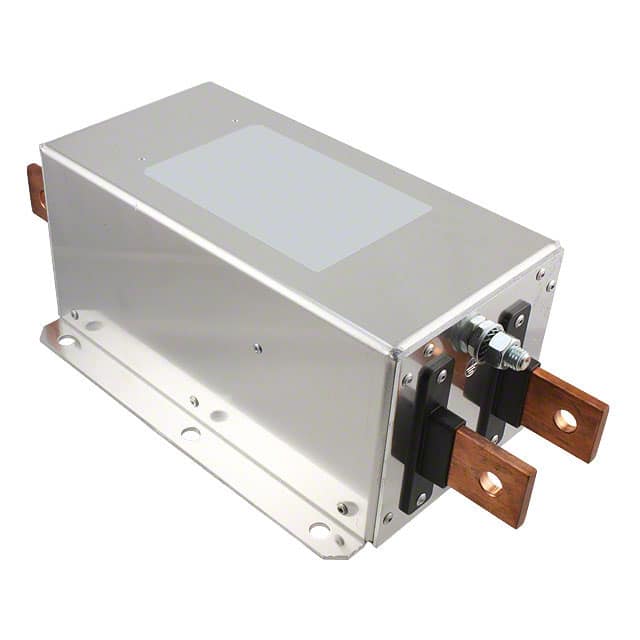

The Schaffner FN2200-800-99 is a single-stage DC EMC/RFI filter designed for photovoltaic inverter systems. It is rated for a continuous current of 800 A at 55°C with a maximum continuous DC voltage of 1200 VDC and AC voltage of 300 VAC. The filter operates at DC and 50/60 Hz frequencies.
The filter provides high attenuation of conducted emissions with a minimum efficiency of 99.9% at 25°C/DC. It features an overload capability of 4x rated current at switch-on and 1.5x rated current for 1 minute once per hour. Power loss is 26 W at nominal conditions. The MTBF exceeds 223,000 hours at 55°C/1200 V per Mil-HB-217F.
Mechanically, the filter is chassis mount with terminal post terminations and has an IP00 protection category. It weighs 9.3 kg and has a flammability rating of UL 94 V-0. The design complies with UL 1283, CSA 22.2 No. 8 1986, and IEC/EN 60939 standards, with approvals from cURus and ENEC.
| Qty | Low | High |
|---|---|---|
| 1+ | $1,367.01 | $1,367.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous operating voltage is 1200 VDC and 300 VAC.
The operating temperature range is -40°C to 100°C.
RoHS3 compliance is indicated but unverified; treat as low confidence.
The rated current is 800 A at 55°C.
It is a single-stage DC EMC/RFI filter.
It has cURus and ENEC approvals.
It is chassis mount with terminal post terminations.
