| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

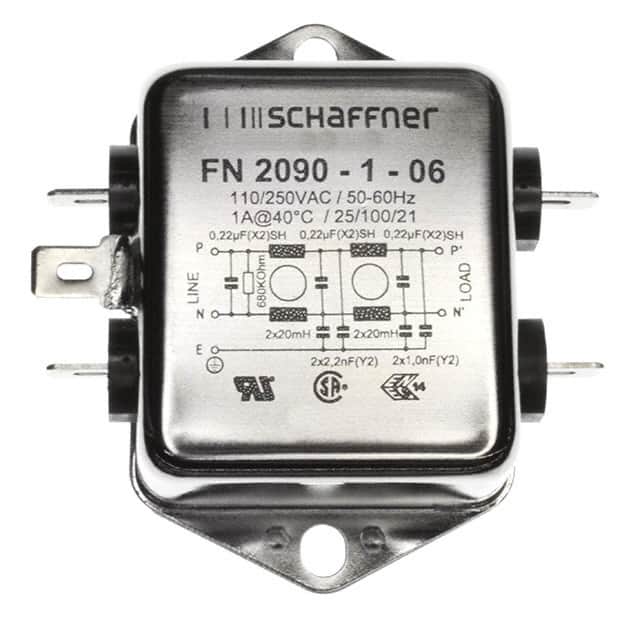

The Schaffner FN2090KK-1-06 is a two-stage single-phase EMC/RFI filter designed for high performance attenuation of differential and common-mode noise. It is rated for a maximum continuous operating voltage of 250 VAC (50/60 Hz) or 250 VDC, with a nominal operating voltage of 230 VAC. The filter supports an operating frequency range from DC to 400 Hz.
This filter is chassis mounted and uses quick connect terminals for easy installation. It is approved to UL 1283, CSA 22.2 No. 8, and IEC/EN 60939 standards, making it suitable for a wide range of AC and DC applications. The operating temperature range is -25°C to +100°C.
The FN2090 series offers optional medical (B type) and safety (A type) versions, as well as enhanced performance and overvoltage protection (Z type) variants. The FN2090KK-1-06 is a standard version providing excellent attenuation for general purpose use.
| Qty | Low | High |
|---|---|---|
| 1+ | $35.92 | $35.92 |
| 10+ | $30.20 | $30.20 |
| 25+ | $27.37 | $27.37 |
| 50+ | $26.32 | $26.32 |
| 250+ | $25.53 | $25.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 1 A.
The maximum continuous operating voltage is 250 VAC (50/60 Hz) or 250 VDC.
The operating temperature range is -25°C to +100°C.
It is certified to UL 1283, CSA 22.2 No. 8, and IEC/EN 60939.
The mounting type is chassis mount.
The termination style is quick connect.
