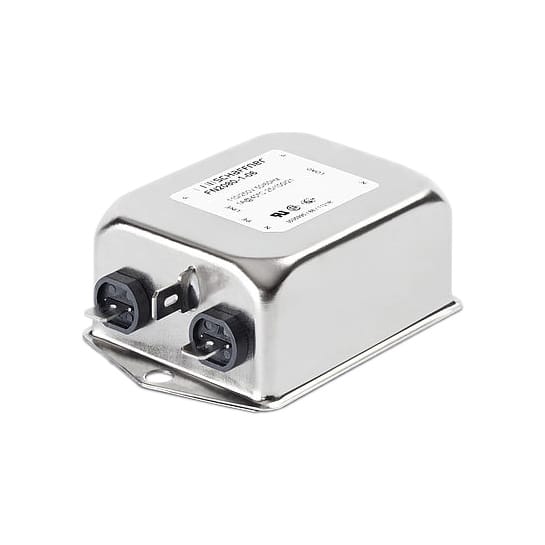

The Schaffner FN2080A-10-06 is a high performance single-phase EMC/RFI filter designed for easy chassis mounting. It is rated for a maximum continuous operating voltage of 250 VAC and a rated current of 10 A at 40 °C. The filter operates from DC to 400 Hz and provides high differential and common-mode attenuation with good low frequency attenuation.
The FN2080A-10-06 is a two-stage filter with a compact design. It uses quick connect terminations and is certified to UL 1283, CSA 22.2 No. 8, and IEC/EN 60939. The filter has a high pot test voltage of 2000 VAC from line to ground and 1100 VDC from line to line. It is designed for an operating temperature range of -25°C to +100°C.
The A type version features low capacitance to earth for safety critical applications requiring low leakage currents. The filter is suitable for use in a variety of applications including industrial equipment, medical devices (B type versions), and safety critical systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $78.03 | $78.03 |
| 10+ | $65.82 | $65.82 |
| 20+ | $64.22 | $64.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 10 A at 40 °C.
The maximum continuous operating voltage is 250 VAC.
The operating temperature range is -25°C to +100°C.
It is certified to UL 1283, CSA 22.2 No. 8, and IEC/EN 60939.
The mounting type is chassis mount.
The termination style is quick connect.
The high pot test voltage is 2000 VAC from line to ground and 1100 VDC from line to line for 2 seconds.
