| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Termination Style | |
| Voltage |

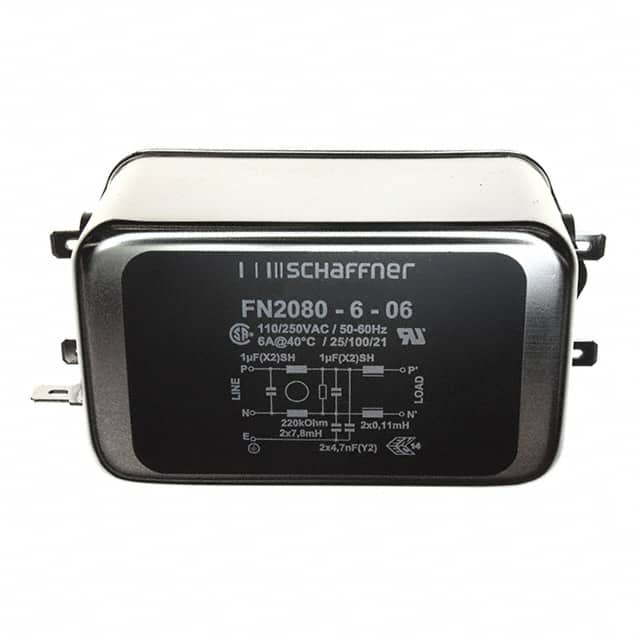

The Schaffner FN2080-6-06 is a high performance single phase EMC/RFI filter designed for general purpose applications. It is a two-stage filter rated for 6A continuous current at 40°C and a maximum continuous operating voltage of 250 VAC. The filter operates from DC to 400 Hz and provides high differential and common-mode attenuation with good low frequency performance.
The filter is chassis mounted and uses quick connect terminals for easy installation. It is designed for an operating temperature range of -25°C to +100°C and is rated for altitudes up to 2000 meters. The terminal plastic meets UL 94 V-0 flammability rating. The filter is certified to CSA, ENEC, and UR standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $55.59 | $55.59 |
| 10+ | $51.30 | $51.30 |
| 20+ | $45.79 | $45.79 |
| 100+ | $44.42 | $44.42 |
| 260+ | $43.05 | $43.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 6 A at 40°C.
The maximum continuous operating voltage is 250 VAC.
The operating temperature range is -25°C to +100°C.
The part is listed as RoHS3 compliant, but this status is unverified.
It uses chassis mount with quick connect terminals.
It is approved by CSA, ENEC, and UR.
