| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Termination Style | |
| Voltage |

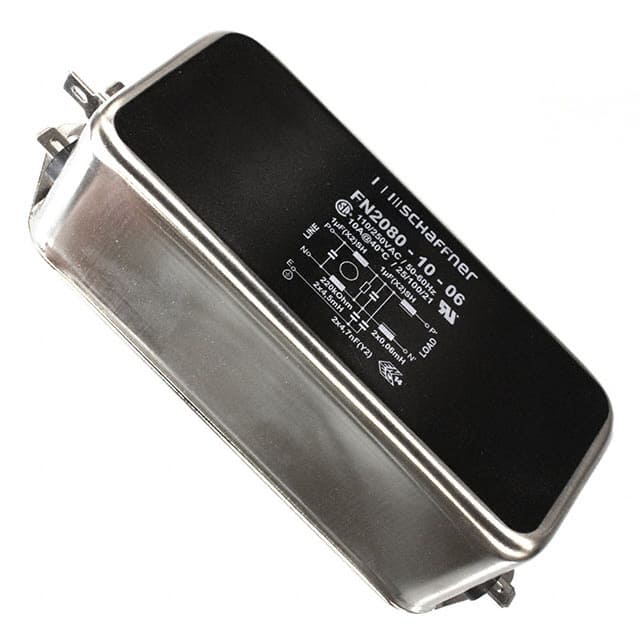

The Schaffner FN2080-10-06 is a high-performance single-phase EMC/RFI filter from the FN2080 series. It is a two-stage filter designed to provide high differential and common-mode attenuation with good low-frequency performance. Rated for 10A at 110/250VAC (250VAC maximum continuous operating voltage) and DC to 400Hz operating frequency, this filter is suitable for AC/DC applications.
The filter is chassis mounted with quick connect terminals for easy installation. It operates over a temperature range of -25°C to 100°C and is approved to CSA, ENEC, and UR standards. The terminal plastic has a flammability rating of UL 94 V-0. The filter is designed for an altitude of up to 2000m, overvoltage category II, and pollution degree 2 per IEC 60664-1. MTBF is greater than 1,650,000 hours at 40°C/230V.
This filter is intended for general purpose EMI suppression in power electronics, industrial equipment, and other single-phase applications. It is RoHS and REACH compliant (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $72.33 | $72.33 |
| 10+ | $64.12 | $64.12 |
| 20+ | $61.18 | $61.18 |
| 100+ | $61.17 | $61.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 A.
110/250 VAC.
-25°C to 100°C.
Yes, RoHS3 compliant (unverified).
Chassis mount.
CSA, ENEC, UR.
Two-stage.
