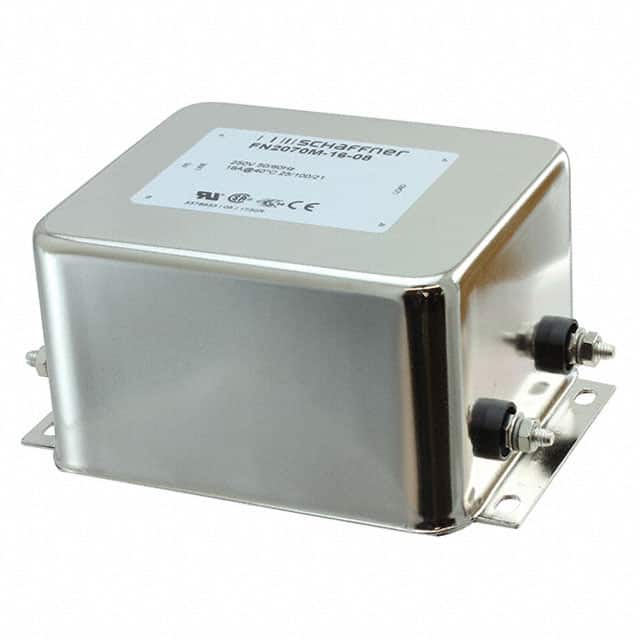

The Schaffner FN2070M-16-08 is a high performance single phase two stage EMC/RFI filter designed for AC and DC applications. It is rated for a continuous operating voltage of 250 VAC (50/60 Hz) and 250 VDC, with a nominal operating voltage of 230 VAC. The filter handles a rated current of 16 A at 40°C and operates over a frequency range from DC to 400 Hz.
Key electrical specifications include a typical inductance of 2.8 mH and a leakage current of 0.66 mA at 250 VAC/50 Hz. High potential test voltages are 2000 VAC (P to PE) and 1100 VDC (P to N) for 2 seconds. The filter meets overvoltage category II and pollution degree 2 per IEC 60664-1. It has an MTBF greater than 1,550,000 hours at 40°C/230 V (Mil-HB-217F).
The FN2070M-16-08 is chassis mounted with M4 threaded post terminations. It operates over a temperature range of -25°C to 100°C. The terminal plastic has a flammability rating of UL 94 V-0. The filter is approved by CSA, ENEC, and UR. It is designed for high differential and common-mode attenuation and is suitable for applications requiring high frequency attenuation.
| Qty | Low | High |
|---|---|---|
| 1+ | $109.75 | $109.75 |
| 10+ | $97.43 | $97.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 16 A at 40°C.
The maximum continuous operating voltage is 250 VAC (50/60 Hz) and 250 VDC.
The operating and storage temperature range is -25°C to 100°C.
It is chassis mount with M4 threaded post terminations.
It is approved by CSA, ENEC, and UR.
The typical leakage current is 0.66 mA at 250 VAC/50 Hz.
Yes, it is listed as RoHS3 compliant, but this is unverified.
