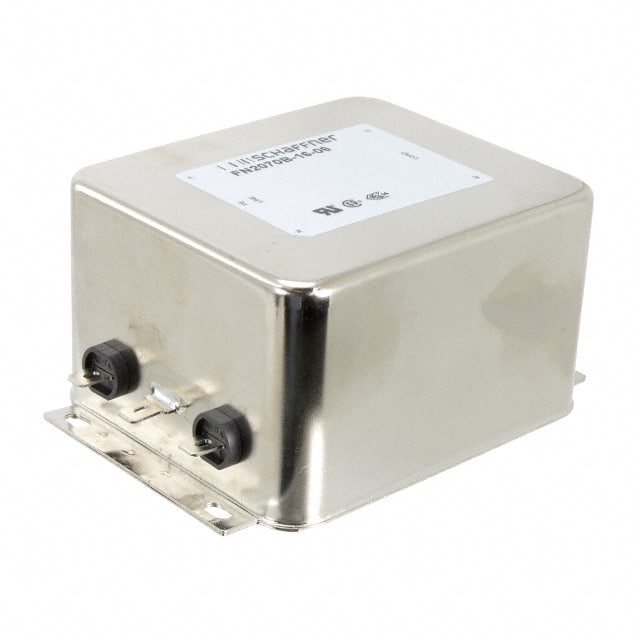

The Schaffner FN2070B-16-06 is a single phase, two-stage EMC/RFI power line filter from the FN2070 series. This B-type (medical) version features no capacitors to earth, resulting in low leakage current of 0.66 mA typical at 250 VAC/50 Hz. It is rated for 16 A continuous current at 40°C and a maximum continuous operating voltage of 250 VAC or 250 VDC, with nominal operating voltage of 230 VAC. The filter operates over a frequency range from DC to 400 Hz and provides high differential and common-mode attenuation.
The filter is chassis mounted with quick connect terminals for easy installation. It is designed for operating temperatures from -25°C to 100°C and storage in the same range. The filter meets high potential test voltages of 2500 VAC (P to PE) and 1100 VDC (P to N) for 2 seconds. It is certified to UL 1283, CSA 22.2 No. 8, and IEC/EN 60939 standards. Typical applications include power supplies, medical equipment, and industrial automation systems. The typical weight is 400 g (based on the FN2070-16-06 variant).
| Qty | Low | High |
|---|---|---|
| 1+ | $101.89 | $101.89 |
| 10+ | $87.37 | $87.37 |
| 20+ | $85.25 | $85.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Maximum continuous operating voltage is 250 VAC/VDC, nominal operating voltage is 230 VAC.
Chassis mount with quick connect terminals.
-25°C to 100°C.
RoHS3 compliant (unverified, low confidence).
0.66 mA typical at 250 VAC/50 Hz.
UL 1283, CSA 22.2 No. 8, and IEC/EN 60939 certified.
2500 VAC for P-PE and 1100 VDC for P-N.
