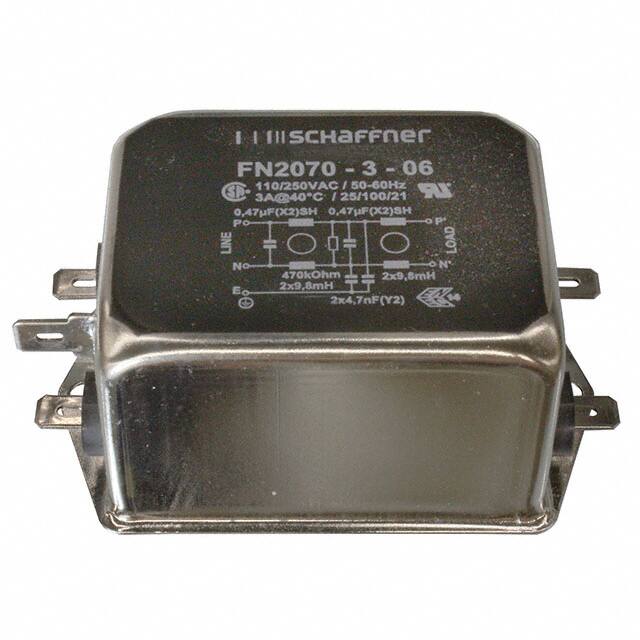

The Schaffner FN2070-3-06 is a high-performance single-phase EMC/RFI filter from the FN2070 series. It is designed for chassis mounting and features quick connect terminals for easy installation. The filter is rated for a nominal operating voltage of 230 VAC and a maximum continuous operating voltage of 250 VAC (50/60 Hz) or 250 VDC. It has a rated current of 3 A at 40°C and 3.5 A at 25°C.
This two-stage filter provides high differential and common-mode attenuation, making it suitable for suppressing electromagnetic interference in AC and DC power lines. Key electrical specifications include an inductance of 9.8 mH, line-to-neutral capacitance (Cx) of 0.47 µF, and line-to-ground capacitance (Cy) of 4.7 nF. The maximum leakage current is 0.66 mA at 250 VAC/50 Hz and 0.38 mA at 120 VAC/60 Hz.
The filter operates over a temperature range of -25°C to +100°C and is certified to CSA, ENEC, and UR standards. It has a high potential test voltage of 2000 VAC from phase to ground and 1100 VDC from phase to neutral. The mean time between failures (MTBF) is greater than 1,550,000 hours at 40°C/230 V.
| Qty | Low | High |
|---|---|---|
| 1+ | $37.53 | $37.53 |
| 10+ | $33.49 | $33.49 |
| 20+ | $27.32 | $27.32 |
| 100+ | $26.50 | $26.50 |
| 260+ | $25.68 | $25.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous operating voltage is 250 VAC (50/60 Hz) or 250 VDC. The nominal operating voltage is 230 VAC.
The operating temperature range is -25°C to +100°C for both operation and storage.
The RoHS status is listed as RoHS3 Compliant, but this information is unverified and should be confirmed with the manufacturer.
The rated current is 3 A at 40°C and 3.5 A at 25°C.
The filter is designed for chassis mounting and uses quick connect terminals.
The filter is approved to CSA, ENEC, and UR standards.
