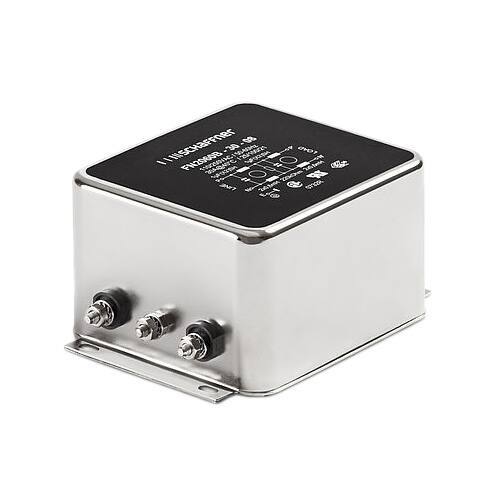

The Schaffner FN2060B-20-06 is a high-performance single-phase EMC/RFI filter from the FN2060 series. It is designed for general purpose applications requiring conducted attenuation. The filter is rated for a maximum continuous operating voltage of 250 VAC or 250 VDC and a rated current of 20 A at 40°C. It operates over a frequency range from DC to 400 Hz. The filter employs a two-stage configuration using chokes with high saturation resistance and excellent thermal behavior. The B-type version is suitable for medical equipment (1MOP) as it has no capacitors to earth. The chassis mount package with quick connect terminals allows for easy and fast installation. The operating temperature range is -25°C to +100°C. The filter complies with UL 1283, CSA 22.2 No. 8, and IEC/EN 60939. It holds approvals from CE, CSA, ENEC, and UR. The MTBF is 1,650,000 hours at 40°C/230V for B types. The filter is suitable for noisy applications requiring good differential and common-mode attenuation. It is also available in A type for safety-critical applications requiring low leakage currents.
| Qty | Low | High |
|---|---|---|
| 1+ | $65.75 | $65.75 |
| 20+ | $65.12 | $65.12 |
| 60+ | $59.17 | $59.17 |
| 100+ | $58.60 | $58.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous operating voltage is 250 VAC or 250 VDC.
The operating temperature range is -25°C to +100°C.
Chassis mount with quick connect terminals.
The filter is listed as RoHS3 Compliant, but this data is unverified and should be confirmed with the manufacturer.
The rated current is 20 A at 40°C.
CE, CSA, ENEC, and UR.
The inductance is 600 µH (value from existing database, medium confidence).
