| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

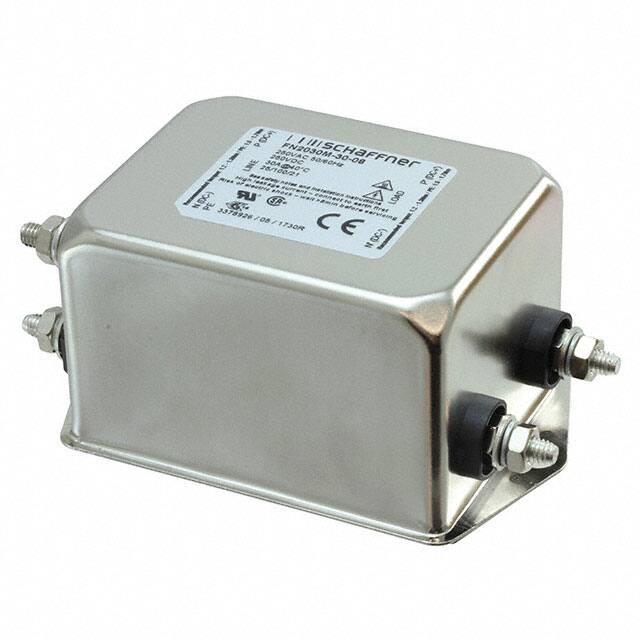

The Schaffner FN2030M-30-08 is a high performance single phase EMC/RFI filter designed for general purpose AC/DC applications. It is rated for a maximum continuous operating voltage of 250 VAC or 250 VDC and a rated current of 30 A at 40°C. The filter operates over a frequency range from DC to 400 Hz.
This filter provides high differential-mode attenuation and is suitable for use in equipment requiring conducted emission suppression. It is approved to CE, CSA, ENEC, and UR standards. The operating temperature range is -25°C to 100°C.
The FN2030M-30-08 features a chassis mount package with M4 threaded post terminations for secure power connections. It is designed for easy and fast mounting in industrial and commercial power systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $75.09 | $75.09 |
| 10+ | $61.80 | $61.80 |
| 100+ | $59.96 | $59.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous operating voltage is 250 VAC (50/60 Hz) or 250 VDC.
The rated current is 30 A at 40°C.
The operating temperature range is -25°C to 100°C.
RoHS status is listed as RoHS3 compliant, but this is unverified and should be treated as low confidence.
It is chassis mounted with M4 threaded post terminations.
