| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Termination Style | |
| Voltage |

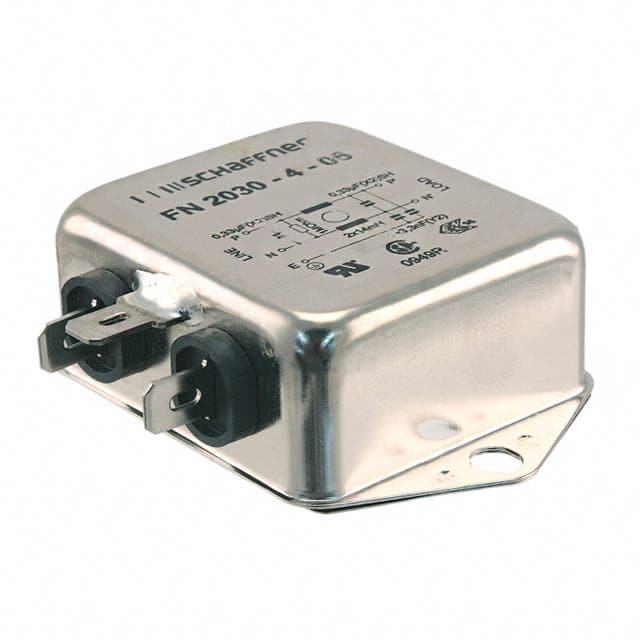

The Schaffner FN2030-4-06 is a high performance single-phase EMC/RFI filter from the FN2030 series. It is rated for a continuous operating voltage of 250VAC/250VDC (nominal 230VAC) and a current of 4A at 40°C. The filter operates from DC to 400Hz and provides high differential-mode attenuation.
This filter is chassis mounted with quick connect terminals for easy installation. It is designed for general purpose applications and complies with CSA, ENEC, and UR safety standards. High potential test voltages are 1100VDC (P->N) and 2000VAC (P->PE). The operating temperature range is -25°C to 100°C, and the MTBF exceeds 2,200,000 hours at 40°C/230V.
The FN2030-4-06 features a single stage design with 14mH inductance. It is suitable for both AC and DC applications and is rated for overvoltage category II and pollution degree 2 per IEC 60664-1. The terminal plastic meets UL 94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.33 | $26.33 |
| 10+ | $21.48 | $21.48 |
| 25+ | $19.98 | $19.98 |
| 50+ | $19.31 | $19.31 |
| 100+ | $18.85 | $18.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Maximum continuous operating voltage is 250VAC/250VDC, nominal operating voltage is 230VAC.
-25°C to 100°C.
RoHS3 Compliant (unverified).
4A at 40°C.
Chassis mount with quick connect terminals.
CSA, ENEC, UR.
14mH.
