| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

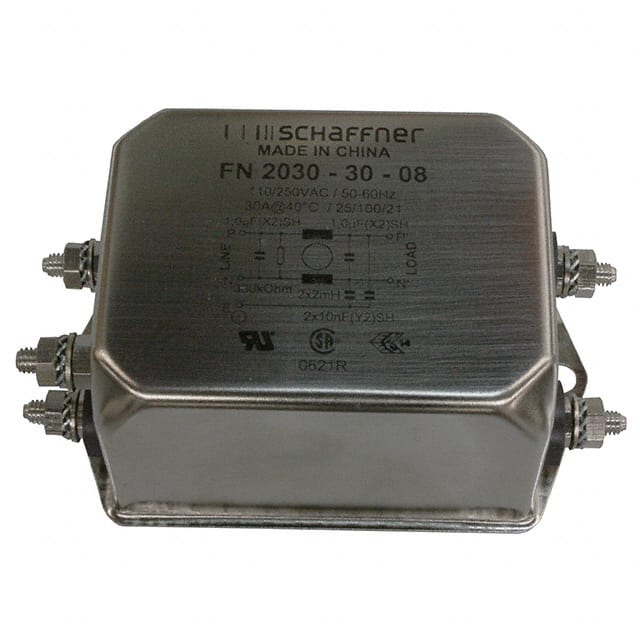

The Schaffner FN2030-30-08 is a high-performance single-phase EMC/RFI filter designed for general purpose AC/DC applications. It features a rated current of 30A at 40°C and a maximum continuous operating voltage of 250VAC/VDC. The filter operates over a frequency range from DC to 400Hz and provides high differential-mode attenuation. It is certified to UL 1283, CSA 22.2 No. 8, and IEC/EN 60939 standards. The filter is chassis mounted with M4 threaded post terminals for secure connections. It has an operating temperature range of -25°C to 100°C and is rated for pollution degree 2 and overvoltage category II per IEC 60664-1. The filter is available in a single-stage configuration and is suitable for use in various industrial and commercial equipment requiring EMI suppression.
| Qty | Low | High |
|---|---|---|
| 1+ | $65.24 | $65.24 |
| 10+ | $55.02 | $55.02 |
| 20+ | $53.69 | $53.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Maximum continuous operating voltage is 250 VAC/VDC; nominal operating voltage is 230 VAC.
Chassis mount with M4 threaded post terminals.
-25°C to 100°C (operation and storage).
RoHS3 compliant according to existing data, but this is unverified.
