| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Termination Style | |
| Voltage |

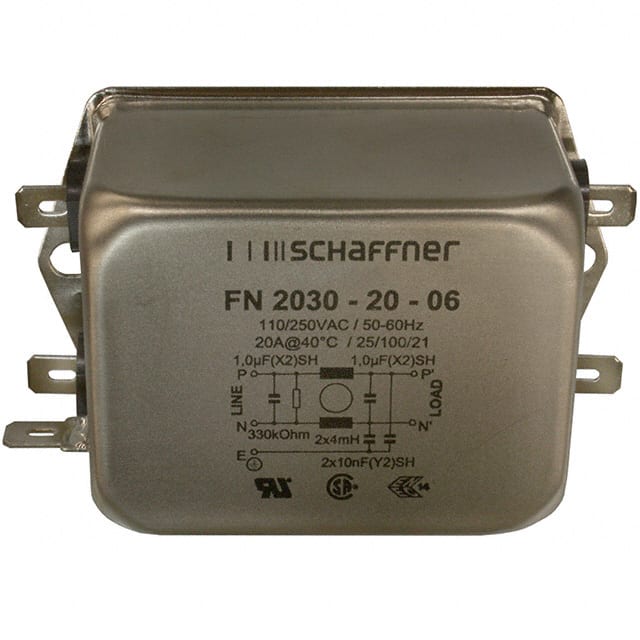

The Schaffner FN2030-20-06 is a single phase, single stage EMC/RFI line filter designed for general purpose AC/DC power line filtering. It is rated for 20A continuous current at 250VAC (or 250VDC) and operates over a frequency range DC to 400Hz. The filter provides high attenuation for both differential and common mode noise.
The filter is chassis mounted and features quick connect terminals for easy installation. It is approved by CSA, ENEC, and UR, and complies with UL 1283 and CSA 22.2 No. 8. The operating temperature range is -25°C to 100°C, and it has a high MTBF of over 1,200,000 hours at 40°C/230V. The terminal plastic has a flammability rating of UL 94 V-0.
For design engineers, the filter includes a 4mH inductance and meets high potential test voltages of 1100VDC (P→N) and 2000VAC (P→PE). It is suitable for industrial equipment, machinery, and other applications requiring reliable EMC filtering.
| Qty | Low | High |
|---|---|---|
| 1+ | $39.04 | $39.04 |
| 10+ | $34.18 | $34.18 |
| 100+ | $29.48 | $29.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
250 VAC or 250 VDC.
-25°C to 100°C.
RoHS3 Compliant (unverified low confidence).
20A.
Chassis Mount.
CSA, ENEC, UR.
Quick Connect.
