| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
280 pcs
|
280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Halogen Free | |
| Inductance | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Termination Style | |
| Voltage |

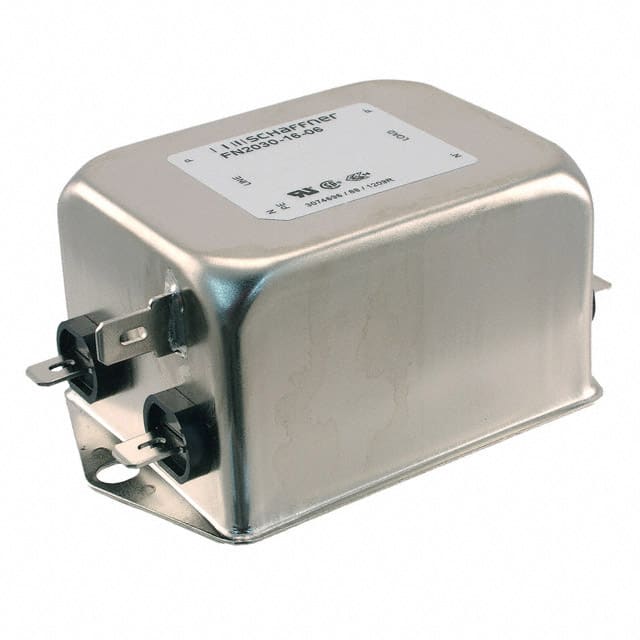

The Schaffner FN2030-16-06 is a high performance single phase EMC/RFI filter from the FN2030 series, designed for general purpose AC/DC applications requiring high attenuation. This single stage filter is rated for a maximum continuous operating voltage of 250 VAC (50/60 Hz) or 250 VDC, with a nominal operating voltage of 230 VAC. It is rated for 16 A at 40°C and operates over a frequency range from DC to 400 Hz.
The filter provides high differential-mode attenuation and is suitable for a wide range of industrial and commercial equipment. It is chassis mounted with quick connect terminations for easy and fast installation. The operating temperature range is -25°C to +100°C, and it is rated for altitudes up to 2000 m. The filter meets overvoltage category II and pollution degree 2 per IEC 60664-1.
Electrical safety is ensured with high potential test voltages of 1100 VDC (P to N) and 2000 VAC (P to PE) for 2 seconds. The filter is certified to UL 1283, CSA 22.2 No. 8, and IEC/EN 60939, with approvals from CSA, ENEC, and UR. The terminal plastic is rated UL 94 V-0 for flammability.
With an MTBF of greater than 1,200,000 hours at 40°C and 230 V, the FN2030-16-06 offers reliable long-term performance. It is designed for easy chassis mounting, making it suitable for use in power supplies, industrial machinery, and other equipment requiring effective EMI filtering.
| Qty | Low | High |
|---|---|---|
| 1+ | $34.14 | $34.14 |
| 10+ | $30.25 | $30.25 |
| 20+ | $27.42 | $27.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous operating voltage is 250 VAC (50/60 Hz) or 250 VDC, with a nominal operating voltage of 230 VAC.
The rated current is 16 A at 40°C.
The operating and storage temperature range is -25°C to +100°C.
The filter is chassis mounted with quick connect terminations.
The filter is certified to UL 1283, CSA 22.2 No. 8, and IEC/EN 60939, with approvals from CSA, ENEC, and UR.
The operating frequency range is from DC to 400 Hz.
The MTBF is greater than 1,200,000 hours at 40°C and 230 V.
