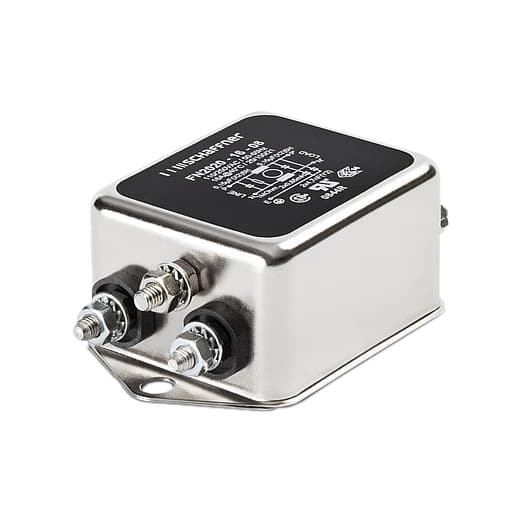

The Schaffner FN2020B-10-06 is a single-phase, single-stage EMC/RFI line filter designed for general purpose AC/DC applications. It is rated for a maximum continuous operating voltage of 250 VAC (50/60 Hz) and 250 VDC, with a rated current of 10 A at 40°C. The filter operates over a frequency range from DC to 400 Hz.
Electrical characteristics include an inductance of 800 µH, capacitance of 0.15 µF (Cx) and 4.7 nF (Cy), and a leakage current of 0.66 mA at 250 VAC/50 Hz. The filter features a discharge resistor of 1000 kΩ and power loss of 2.9 W at 25°C/DC. High potential test voltages are 760 VAC (P–N) and 2500 VAC (P–PE) for B types.
The filter is chassis mounted with quick connect terminals, weighing 85 g. It has an operating temperature range of -25°C to 100°C and an MTBF of 1,750,000 hours at 40°C/230 V (B types). It is certified to CSA, ENEC, and UR standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.11 | $25.11 |
| 10+ | $20.49 | $20.49 |
| 25+ | $19.05 | $19.05 |
| 60+ | $18.42 | $18.42 |
| 120+ | $17.98 | $17.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
250 VAC (50/60 Hz) and 250 VDC.
-25°C to 100°C.
RoHS3 compliant (unverified, low confidence).
10 A at 40°C.
Chassis mount with quick connect terminals.
0.66 mA at 250 VAC/50 Hz.
CSA, ENEC, UR.
