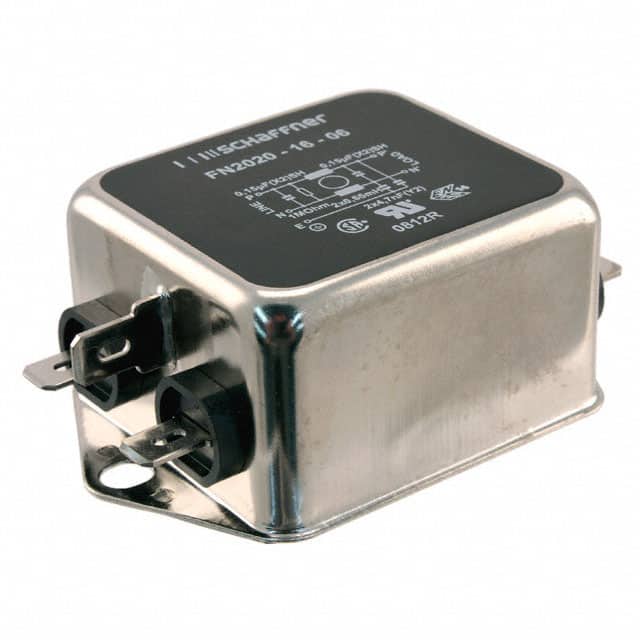

The Schaffner FN2020-16-06 is a single phase, single stage EMC/RFI filter designed for general purpose conducted attenuation. It is rated for a maximum continuous operating voltage of 250 VAC and a nominal voltage of 230 VAC, with an operating frequency range from DC to 400 Hz. The filter provides a rated current of 16 A at 40°C.
Key electrical specifications include an inductance of 650 µH, capacitance values of 0.15 µF (Cx) and 4.7 nF (Cy), and a leakage current of 0.66 mA at 250 VAC/50 Hz. The filter is designed for chassis mounting with quick connect terminals and has a weight of 85 g. It operates over a temperature range of -25°C to 100°C.
The FN2020-16-06 is certified to UL 1283, CSA 22.2 No. 8 1986, and IEC/EN 60939 standards. It is suitable for use in a variety of applications requiring reliable EMI filtering.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.95 | $29.95 |
| 10+ | $24.45 | $24.45 |
| 25+ | $22.55 | $22.55 |
| 60+ | $21.92 | $21.92 |
| 300+ | $21.26 | $21.26 |
| 540+ | $20.60 | $20.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous operating voltage is 250 VAC.
The rated current is 16 A.
It uses chassis mount with quick connect terminals.
The operating temperature range is -25°C to 100°C.
RoHS status is unverified but listed as RoHS3 compliant in existing data.
