| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

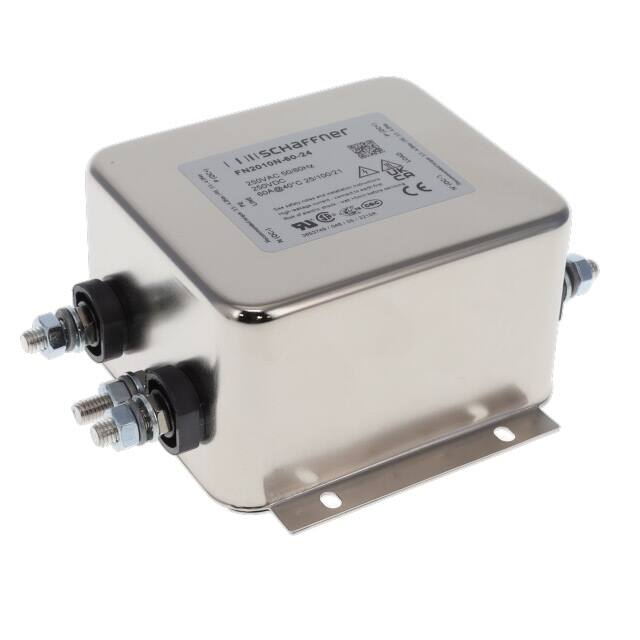

This is a single phase EMC/RFI filter from Schaffner's FN2010 series. It is rated for continuous operation at 60 A and 250 VAC or 250 VDC. The filter operates from DC to 400 Hz and provides general purpose conducted attenuation.
The filter features a single stage configuration with a rated inductance of 1 mH. It is designed for chassis mounting and has threaded post M6 terminals. The operating temperature range is -25°C to 100°C.
It is certified to UL 1283, CSA 22.2 No. 8, and IEC/EN 60939, with approvals from CE, CSA, ENEC, and UR. The high potential test voltage is 1100 VDC between phase and neutral, and 2000 VAC between phase and earth. The MTBF is greater than 1,250,000 hours at 40°C/230 V.
| Qty | Low | High |
|---|---|---|
| 1+ | $163.17 | $163.17 |
| 10+ | $149.00 | $149.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The filter is rated for 250 VAC or 250 VDC.
The operating temperature range is -25°C to 100°C.
Yes, it is listed as RoHS3 compliant, but this data is unverified.
The mounting type is chassis mount.
The termination style is threaded post M6.
The inductance is 1 mH.
It is approved to CE, CSA, ENEC, and UR standards.
