| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Capacitance (CX) | |
| Capacitance (Cy) | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| High Potential Test Voltage (@ P->N) | |
| High Potential Test Voltage (@ P->PE) | |
| Inductance | |
| Lead Style | |
| Leakage Current | |
| MTBF | |
| Maximum Continuous Operating Voltage (AC) | |
| Maximum Continuous Operating Voltage (DC) | |
| Mounting Type | |
| Operating Temperature | |
| Overvoltage Category | |
| Pollution Degree | |
| Power Loss | |
| Resistance | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Weight |

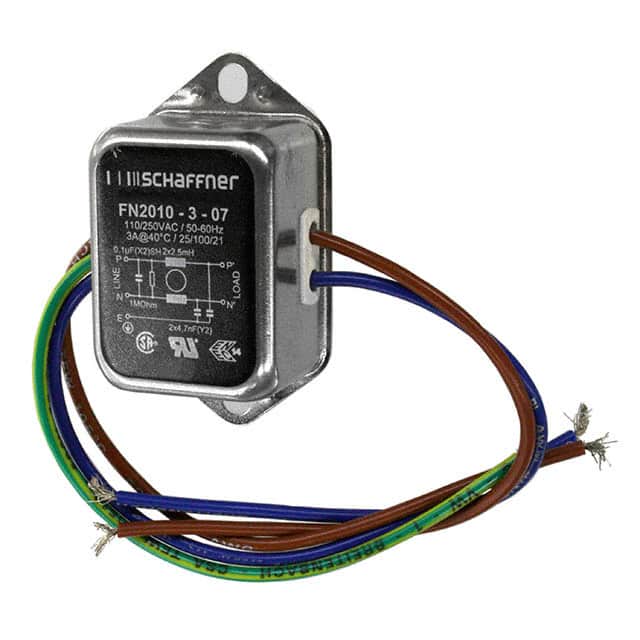

The Schaffner FN2010-3-07 is a single-stage, single-phase EMC/RFI line filter from the FN2010 series, designed for general-purpose conducted attenuation in AC or DC applications. It is rated for a continuous operating voltage of 250 VAC or 250 VDC and a rated current of 3 A at 40 °C.
Electrical specifications include an inductance of 2.5 mH, a capacitance of 0.1 µF (X-cap) and 4.7 nF (Y-cap), and a typical leakage current of 0.66 mA at 250 VAC/50 Hz. The filter operates over a frequency range from DC to 400 Hz and is rated for an operating temperature range of -25 °C to +100 °C.
The filter is housed in a chassis-mount package with wire lead terminations and weighs 65 g. It is approved to CSA, ENEC, and UR standards and is compliant with RoHS and REACH requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.85 | $19.85 |
| 10+ | $16.36 | $16.36 |
| 25+ | $15.12 | $15.12 |
| 300+ | $14.68 | $14.68 |
| 540+ | $14.22 | $14.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 3 A at 40 °C.
The maximum continuous operating voltage is 250 VAC or 250 VDC.
The operating temperature range is -25 °C to +100 °C.
Yes, the FN2010-3-07 is listed as RoHS3 compliant.
The filter uses chassis mount with wire lead terminations.
The inductance is 2.5 mH.
It carries CSA, ENEC, and UR approvals.
