| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
420 pcs
|
420 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

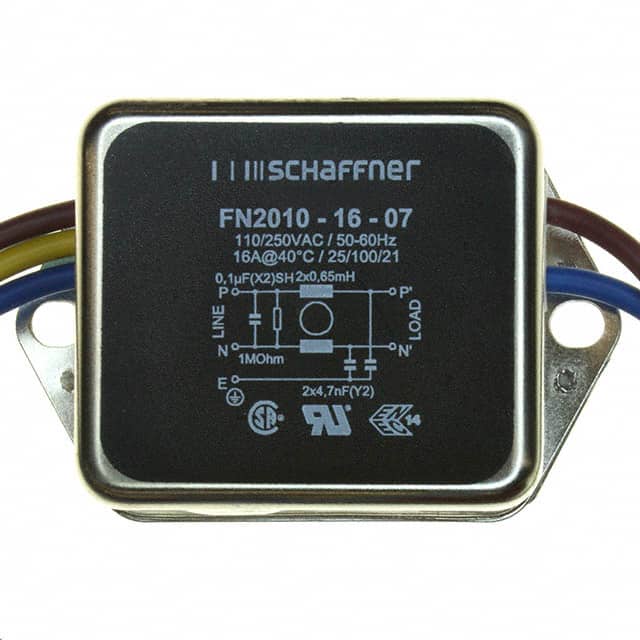

The Schaffner FN2010-16-07 is a single phase, single stage EMC/RFI power line filter designed for general purpose conducted attenuation. It is rated for a continuous operating voltage of 250 VAC and a nominal voltage of 230 VAC, with a rated current of 16 A at 40°C. The filter operates over a frequency range from DC to 400 Hz.
This filter is chassis mounted and terminated with wire leads, making it suitable for easy integration into equipment enclosures. It is certified to UL 1283, CSA 22.2 No. 8 1986, and IEC/EN 60939 standards. The operating temperature range is -25°C to +100°C, and it is rated for altitudes up to 2000 m with derating above.
The FN2010-16-07 includes a 700 µH inductance and meets high potential test requirements of 1100 VDC (P->N) and 2000 VAC (P->PE). It is designed for overvoltage category II and pollution degree 2 per IEC 60664-1. The flammability rating for laces is UL 94 VW-1.
| Qty | Low | High |
|---|---|---|
| 1+ | $31.22 | $31.22 |
| 10+ | $27.73 | $27.73 |
| 25+ | $24.76 | $24.76 |
| 60+ | $22.91 | $22.91 |
| 120+ | $22.55 | $22.55 |
| 300+ | $21.86 | $21.86 |
| 540+ | $21.19 | $21.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 16 A at 40°C.
Maximum continuous operating voltage is 250 VAC, 50/60 Hz, or 250 VDC. Nominal operating voltage is 230 VAC.
The operating and storage temperature range is -25°C to +100°C.
Yes, it is listed as RoHS3 compliant, though this is unverified from a document URL.
It uses chassis mount with wire lead terminations.
It operates from DC to 400 Hz.
It is certified to UL 1283, CSA 22.2 No. 8 1986, and IEC/EN 60939.
