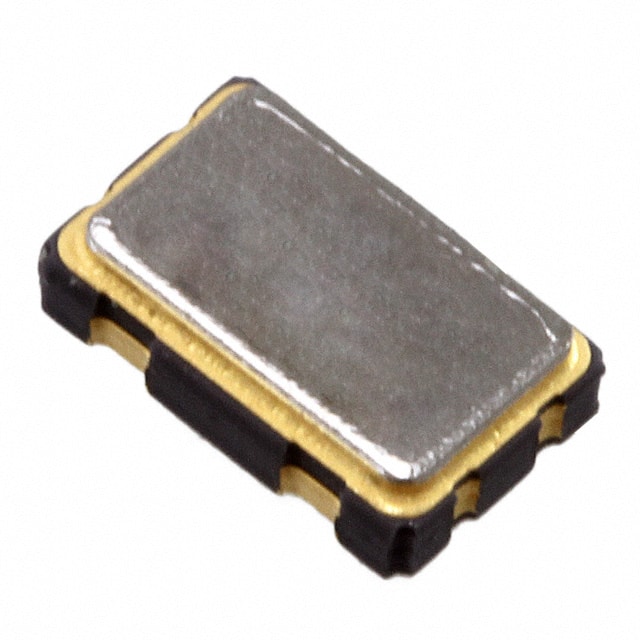

FN2000118 FN2000118 is a 20MHz crystal clock oscillator (XO) from Diodes Incorporated. It operates at 3.3V with CMOS output logic and ±50ppm frequency stability.
Mfr Part #:

FN2000118

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
FN2000118 is a 20MHz crystal clock oscillator (XO) from Diodes Incorporated. It operates at 3.3V with CMOS output logic and ±50ppm frequency stability.
✓ Total Stock: 1,000 pcs
$ Price Range: $0.79 - $1.34

FN2000118 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FN2000118 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Function
Height
Industrial Grade
Length
Mounting Type
Operating Temperature
Output
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

FN2000118 Description

Short technical summary and product information.

The FN2000118 is a 20MHz crystal clock oscillator (XO) from Diodes Incorporated, part of the FN Series. It features a crystal base resonator and provides a CMOS output with enable/disable function. The oscillator operates at a nominal supply voltage of 3.3V and draws a maximum supply current of 15mA.



Frequency stability is rated at ±50ppm maximum over the full operating temperature range of -40°C to +85°C. The device is designed for surface mount assembly in a 4-SMD, No Lead ceramic package measuring 7.00mm x 5.00mm x 1.80mm.



This oscillator is suitable for general-purpose timing applications requiring a stable 20MHz clock source. The enable/disable function allows for power saving by gating the output when not needed.

FN2000118 Quick Information

Product Type: Crystal Clock Oscillator (XO)
Series: S1613 Series
Canonical Name: FN2000118 20MHz 3.3V CMOS XO Oscillator
Subcategory: Crystal Clock Oscillator

FN2000118 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FN2000118 Estimated Pricing

Qty Low High
1+ $1.34 $1.34
10+ $1.17 $1.17
25+ $1.06 $1.06
100+ $1.00 $1.00
250+ $0.94 $0.94
500+ $0.90 $0.90
1,000+ $0.86 $0.86
2,000+ $0.81 $0.81
5,000+ $0.79 $0.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

FN2000118 Features

  • 20MHz nominal output frequency.
  • 3.3V supply voltage with CMOS logic.
  • ±50ppm frequency stability.
  • Enable/Disable output function.
  • -40°C to +85°C operating range.

FN2000118 Applications

  • Ideal for Ethernet and networking equipment.
  • Used in server and storage platforms.
  • Suitable for SONET/SDH linecards.
  • Applicable in T1/E1 and T3/E3 systems.

FN2000118 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output frequency of the FN2000118?

The nominal output frequency is 20 MHz.

What is the supply voltage requirement?

The nominal supply voltage is 3.3V.

What is the frequency stability of this oscillator?

The maximum frequency stability is ±50 ppm.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What package does the FN2000118 come in?

It comes in a 4-SMD, No Lead surface mount package measuring 7.00mm x 5.00mm x 1.80mm.

What output logic does the FN2000118 provide?

The output logic is CMOS.

Does the FN2000118 have an enable/disable function?

Yes, it has an Enable/Disable function.
