| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuse Size (Accepted) | |
| Hipot Test Voltage (Minimum @ P -> N) | |
| Hipot Test Voltage (Minimum @ P -> PE) | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| MTBF | |
| Material Flammability Rating | |
| Maximum Continuous Operating Voltage | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Frequency | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Storage Temperature | |
| Switch Features | |
| Termination | |
| Termination Style |

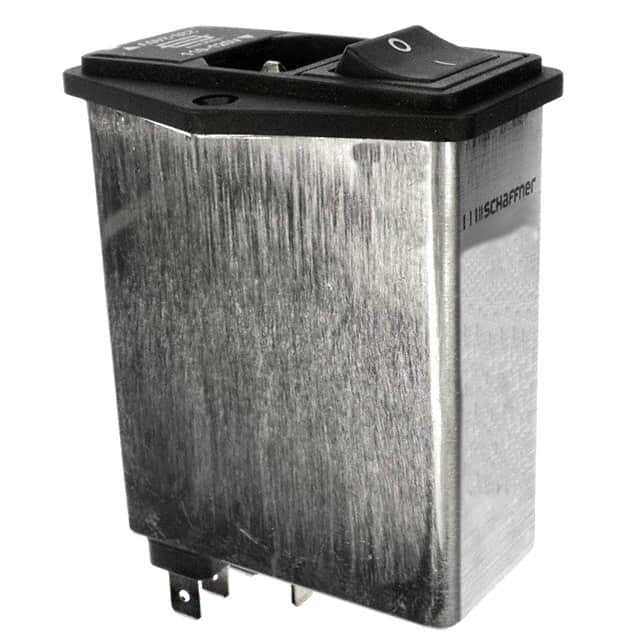

The Schaffner FN1394-10-05-11 is a compact filtered power entry module combining an IEC 320-C14 inlet, EMI/RFI filter, 2-pole rocker switch, and a dual fuse holder in a single panel-mount package. It is rated for a nominal current of 10 A and a maximum continuous operating voltage of 250 VAC, with an operating frequency range from DC to 400 Hz.
This module includes a voltage selector for 110-120 V series or 220-240 V parallel operation, and is equipped with quick connect terminals (0.250" / 6.3 mm). The panel cutout is rectangular (29.00 mm x 60.00 mm), and it can be mounted from the front or rear side using flanges. The fuse holder accepts either Ø6.3 x 32 mm or Ø5 x 20 mm fuses (fuses not included).
The component is designed for commercial equipment requiring integrated EMI filtering, power switching, and fuse protection. It carries UL, CSA, and ENEC approvals and has a flammability rating of UL94 V-2. The operating temperature range is -25°C to +85°C, and the IP40 protection rating makes it suitable for indoor use.
| Qty | Low | High |
|---|---|---|
| 1+ | $52.69 | $52.69 |
| 10+ | $45.50 | $45.50 |
| 20+ | $44.25 | $44.25 |
| 60+ | $42.79 | $42.79 |
| 100+ | $41.55 | $41.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current rating is 10 A.
The maximum continuous operating voltage is 250 VAC.
It is a panel mount with flanges, supporting front or rear side mounting.
Yes, it has a dual fuse holder that accepts Ø6.3 x 32 mm or Ø5 x 20 mm fuses. Fuses are not included.
Yes, it includes a 2-pole rocker switch with On-Off functionality.
