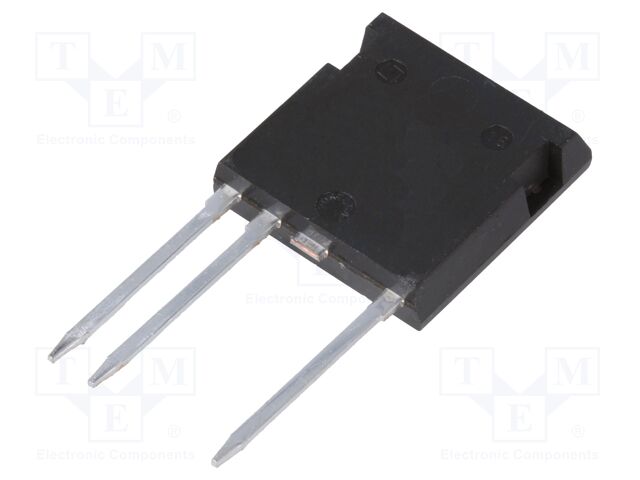

FMD40-06KC N-Channel MOSFET from IXYS rated for 600V and 38A. Features low 70mΩ on-resistance and through-hole i4-Pac-5 package.
Mfr Part #:

FMD40-06KC

Available from 1 distributors
Mfr Name: IXYS
IXYS
N-Channel MOSFET from IXYS rated for 600V and 38A. Features low 70mΩ on-resistance and through-hole i4-Pac-5 package.
✓ Total Stock: 7 pcs
$ Price Range: $6.51 - $39.66

FMD40-06KC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FMD40-06KC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Mounting Type
Operating Temperature
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FMD40-06KC Description

Short technical summary and product information.

The FMD40-06KC is an N-Channel MOSFET manufactured by IXYS. It has a drain-source breakdown voltage of 600V and a maximum drain current of 38A at case temperature. The device features a low on-resistance of 70mΩ (maximum) at 20A drain current and 10V gate drive. The gate threshold voltage is 3.9V, and the maximum gate-source voltage is ±20V. Total gate charge is 250nC at 10V gate voltage.



The MOSFET is housed in a through-hole i4-Pac-5 package with an ISOPLUS i4-PAC supplier device package. It operates over a junction temperature range of -55°C to 150°C. This component is designed for high-voltage switching applications where low on-resistance and efficient power handling are required. The through-hole mounting enables straightforward PCB integration in power electronics circuits.

FMD40-06KC Quick Information

Product Type: Single N-Channel MOSFET
Canonical Name: N-Channel MOSFET (600V, 38A, i4-Pac-5)
Subcategory: Single N-Channel MOSFET

FMD40-06KC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FMD40-06KC Estimated Pricing

Qty Low High
1+ $39.66 $39.66
25+ $6.51 $6.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

FMD40-06KC Features

  • N-Channel MOSFET with 600V breakdown voltage.
  • Maximum drain current of 38A at case temperature.
  • Low on-resistance of 70mΩ at 20A drive.
  • Through-hole i4-Pac-5 package for easy mounting.
  • Operating temperature range from -55°C to 150°C.

FMD40-06KC Applications

  • Used in switch-mode power supplies.
  • Suitable for motor drive inverters.
  • Applied in uninterruptible power systems.
  • Employed in battery charging circuits.

FMD40-06KC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source breakdown voltage of the FMD40-06KC?

The drain-source breakdown voltage is 600V.

What is the maximum drain current?

The maximum drain current is 38A at case temperature.

What is the on-resistance of the FMD40-06KC?

The maximum on-resistance is 70mΩ at 20A drain current and 10V gate drive.

What is the package type?

The device is available in a through-hole i4-Pac-5 package with an ISOPLUS i4-PAC supplier device package.

What is the operating temperature range?

The operating junction temperature range is -55°C to 150°C.

Is the FMD40-06KC RoHS compliant?

It is marked as RoHS3 compliant, but this status is unverified.

What is the total gate charge?

The maximum total gate charge is 250nC at 10V gate voltage.
