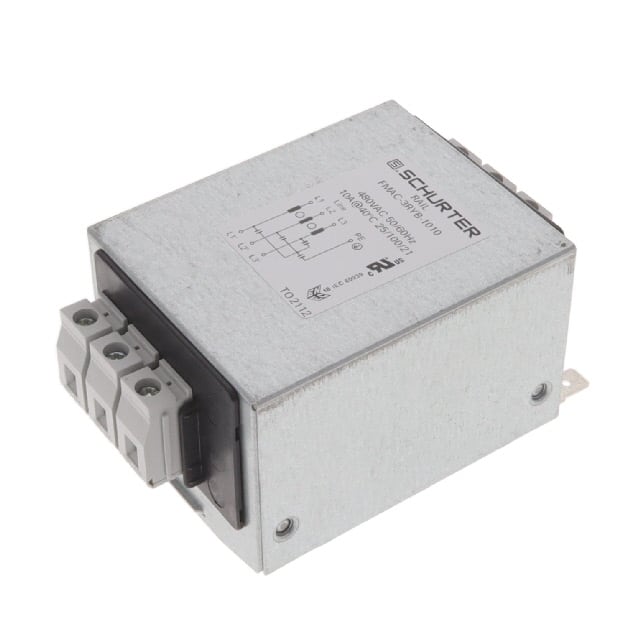

The Schurter FMAC-3RYB-1010 is a 1-stage 3-phase (Delta) AC line filter from the FMAC RAIL series, designed for use in electrical switch and control cabinets. It is rated for a continuous current of 10A at 480VAC (50/60 Hz) and an operating temperature range of -25°C to 100°C.
This filter provides standard attenuation for electromagnetic interference and is suitable for equipment compliant with IEC/UL 62368-1. Key electrical specifications include a maximum leakage current of less than 0.5 mA at 440V/50Hz, dielectric strength of 2.25 kVDC between lines and 3 kVDC between line and ground, and an overload capability of 1.5 times the rated current for one minute per hour.
The FMAC-3RYB-1010 is housed in a metal enclosure with a UL 94V-0 sealing compound and offers IP20 degree of protection. It mounts on a DIN rail and uses M4 bolt and nut terminals for connections, with a quick-connect terminal for the protective earth. The unit weighs 0.4 kg and has a mean time between failures (MTBF) greater than 200,000 hours.
| Qty | Low | High |
|---|---|---|
| 1+ | $64.44 | $64.44 |
| 10+ | $52.59 | $52.59 |
| 25+ | $48.50 | $48.50 |
| 50+ | $45.62 | $45.62 |
| 100+ | $42.90 | $42.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 10 A at an ambient temperature of 40°C.
The operating temperature range is -25°C to 100°C.
The filter is approved to cURus, ENEC, and VDE standards.
The maximum leakage current is less than 0.5 mA at 440 V / 50 Hz.
It is mounted on a DIN rail and uses terminal block connections with M4 bolts and nuts.
The dielectric strength is 2.25 kVDC between lines (L-L) and 3 kVDC between line and ground (L-PE).
The weight is 0.4 kg.
