| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
602,667 pcs
|
602667 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conflict Minerals | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Output | |
| Reset | |
| Reset Timeout | |
| SVHC Present | |
| Supplier Device Package | |
| Type | |
| Voltage |
The ON Semiconductor FM803SP3X is a power supply supervisor integrated circuit. It is designed to provide simple reset and power-on reset functionality. This device operates at a voltage of 2.93V and features an active low reset output, which can be open drain or open collector.
The FM803SP3X monitors a single voltage rail and has a reset timeout of 140ms minimum. It is specified for operation within a temperature range of -40°C to 85°C (TA).

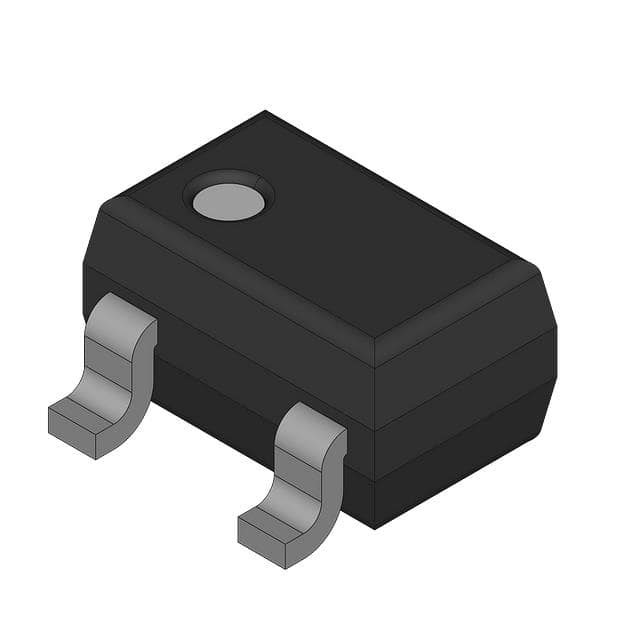

This supervisor IC is available in a SC-70, SOT-323 package, specifically the SC-70-3 (SOT323) supplier device package. It is designed for surface mount applications, making it suitable for compact electronic designs.
Key electrical characteristics include its simple reset type, a nominal operating voltage of 2.93V, and an active low reset signal. The device monitors one voltage and ensures system stability during power-up or voltage fluctuations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The threshold voltage is 2.93V.
It is available in SC-70, SOT-323 (SC-70-3) surface mount package.
-40°C to 85°C.
Active low reset output.
Open drain or open collector.
Minimum 140ms.
It monitors one voltage.
