Mfr Part #:

FM28V020-SGTR

The Cypress Semiconductor FM28V020-SGTR is a 256 kbit FRAM memory with a parallel interface. It operates at 3.3V and is suitable for a wide temperature range.

✓ Total Stock: 19,803 pcs

$ Price Range: $1.50

FM28V020-SGTR Available from 5 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	12,914 pcs On Request	12914 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	5,100 pcs On Request	5100 pcs	On Request	1	On Request	On Request	1443+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,383 pcs On Request	1383 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Flip Electronics ✓ Non-Authorised Inventory information	282 pcs On Request	282 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	124 pcs On Request	124 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FM28V020-SGTR Description

Short technical summary and product information.

The Cypress Semiconductor FM28V020-SGTR is a non-volatile Ferroelectric RAM (FRAM) memory chip with a storage capacity of 256 kbit. It features a parallel interface for data access and operates efficiently at a supply voltage of 3.3V, with a supported range from 2V to 3.6V.

Designed for reliability, this FRAM memory offers a fast access time of 140 ns and a write cycle time of 140 ns. It is specified for operation across a wide temperature range, from -40°C to 85°C, making it suitable for various environmental conditions.

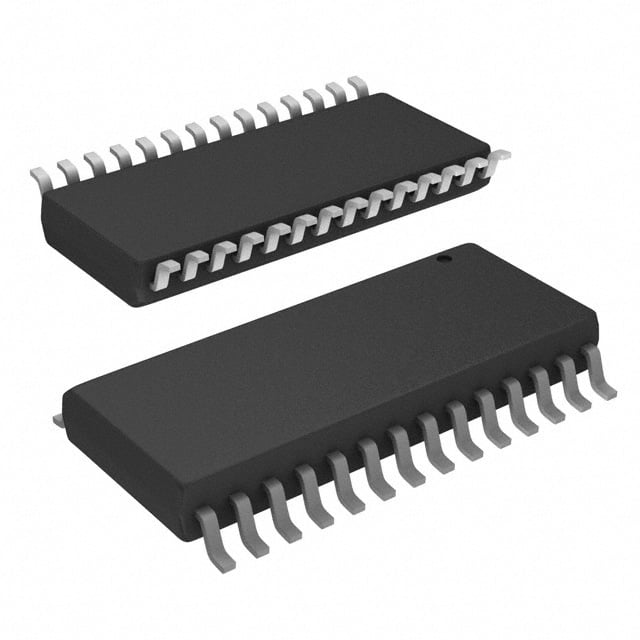

The component comes in a 28-pin SOIC package, designed for surface mounting. Its memory organization is 32K x 8 bits, providing a standard configuration for many embedded applications. The FM28V020-SGTR is a robust memory solution for applications requiring fast write speeds and data retention without the need for a battery backup.

FM28V020-SGTR Quick Information

Product Type: FRAM Memory

Canonical Name: Cypress Semiconductor FM28V020-SGTR FRAM Memory

Subcategory: Memory

FM28V020-SGTR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FM28V020-SGTR Estimated Pricing

Qty	Low	High
1+	$1.50	$1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

FM28V020-SGTR Features

256 kbit FRAM non-volatile memory.
Fast 140 ns access and write times.
Parallel interface for data transfer.
Wide operating voltage from 2V to 3.6V.
Surface mountable 28-pin SOIC package.

FM28V020-SGTR Applications

Ideal for embedded system data logging.
Suitable for storing configuration parameters.
Used in industrial control applications.
Applicable in harsh environmental conditions.

FM28V020-SGTR FAQs

5 frequently asked questions generated from this part’s specifications.

What is the memory type of the FM28V020-SGTR?

The FM28V020-SGTR is a FRAM (Ferroelectric RAM) memory.

What is the memory capacity of the FM28V020-SGTR?

The memory capacity is 256 kbit.

What is the operating voltage for the FM28V020-SGTR?

The operating voltage is 3.3V, with a range of 2V to 3.6V.

What is the operating temperature range for this memory chip?

The operating temperature range is -40°C to 85°C.

What package type is the FM28V020-SGTR available in?

It is available in a 28-pin SOIC package for surface mounting.

Category	New Products
Manufacturer Name	Cypress Semiconductor
Access Time	140 ns
Interface	Parallel
Memory Organization	32K x 8
Memory Size	256 kbit
Memory Type	FRAM
Mounting Type	Surface Mount
Number of Pins	28
Operating Temperature	85°C
Operating Voltage	2 V
Storage Temperature	°C ~ °C
Tape & Reel	No
Write Cycle Time	140 ns
