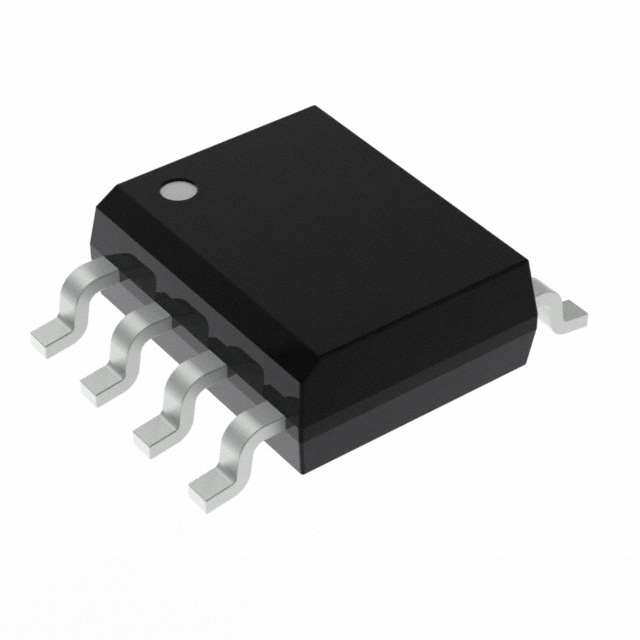

FM25V01-GTR The Cypress Semiconductor FM25V01-GTR is a 128-Kbit ferroelectric random access memory (F-RAM) with a serial peripheral interface (SPI). It operates at up to 40 MHz and is housed in an 8-SOIC package.
Mfr Part #:

FM25V01-GTR

Available from 2 distributors
Mfr Name: Cypress Semiconductor
Cypress Semiconductor
The Cypress Semiconductor FM25V01-GTR is a 128-Kbit ferroelectric random access memory (F-RAM) with a serial peripheral interface (SPI). It operates at up to 40 MHz and is housed in an 8-SOIC package.
✓ Total Stock: 128,000 pcs
$ Price Range: $1.28

FM25V01-GTR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
120,000 pcs
On Request
120000 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FM25V01-GTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
SVHC Present
Supplier Device Package
Technology
Voltage
View Similar Products (0)

FM25V01-GTR Description

Short technical summary and product information.

The Cypress Semiconductor FM25V01-GTR is a 128-Kbit nonvolatile memory utilizing advanced ferroelectric process technology. This F-RAM device offers read and write operations similar to a RAM, providing reliable data retention for 151 years. It features a very fast serial peripheral interface (SPI) supporting up to 40-MHz frequency and SPI modes 0 and 3.



Designed for high-endurance applications, the FM25V01-GTR supports 100 trillion (10^14) read/writes with no-delay writes, allowing subsequent bus cycles to commence immediately after data transfer. It operates over an industrial temperature range of -40 °C to +85 °C and a low voltage range of 2.0 V to 3.6 V. The memory is logically organized as 16 K × 8 bits.



This F-RAM is a direct hardware replacement for serial flash and EEPROM, offering significant advantages in write endurance and speed. It includes a sophisticated write protection scheme with hardware and software options, as well as device ID for manufacturer and product identification. The component is supplied in an 8-pin small outline integrated circuit (SOIC) package suitable for surface mounting.

FM25V01-GTR Quick Information

Product Type: FRAM Memory
Canonical Name: FM25V01-GTR 128-Kbit Serial (SPI) F-RAM
Subcategory: Serial (SPI)

FM25V01-GTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FM25V01-GTR Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

FM25V01-GTR Features

  • 128-Kbit ferroelectric random access memory.
  • High-endurance 100 trillion read/writes.
  • 151-year data retention capability.
  • Fast 40-MHz serial peripheral interface (SPI).
  • Low power consumption with sleep mode.

FM25V01-GTR Applications

  • Ideal for data logging applications.
  • Suitable for industrial control systems.
  • Direct replacement for serial flash/EEPROM.
  • Applications requiring frequent writes.

FM25V01-GTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the memory size of the FM25V01-GTR?

The FM25V01-GTR has a memory size of 128 Kbit.

What memory interface does the FM25V01-GTR use?

The FM25V01-GTR uses an SPI memory interface.

What is the maximum clock frequency for the FM25V01-GTR?

The maximum clock frequency for the FM25V01-GTR is 40 MHz.

What type of memory is the FM25V01-GTR?

The FM25V01-GTR is a FRAM (Ferroelectric RAM) memory.

What is the operating voltage range for the FM25V01-GTR?

The operating voltage range for the FM25V01-GTR is 2V to 3.6V.

What is the operating temperature range of the FM25V01-GTR?

The operating temperature range of the FM25V01-GTR is -40°C to +85°C.

What is the package type for the FM25V01-GTR?

The FM25V01-GTR is available in an 8-SOIC package.
