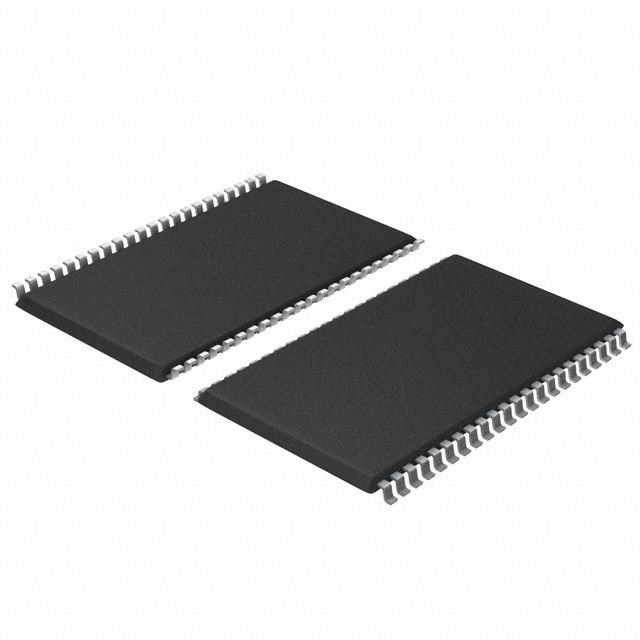

FM22L16-55-TGTR The Infineon Technologies FM22L16-55-TGTR is a 4Mbit F-RAM memory chip. It features a 110 ns access time and operates from 2.7V to 3.6V.
Mfr Part #:

FM22L16-55-TGTR

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies FM22L16-55-TGTR is a 4Mbit F-RAM memory chip. It features a 110 ns access time and operates from 2.7V to 3.6V.
✓ Total Stock: 5,000 pcs
$ Price Range: $52.05

FM22L16-55-TGTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FM22L16-55-TGTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
SVHC Present
Supplier Device Package
Technology
Voltage
Write Cycle Time
View Similar Products (0)

FM22L16-55-TGTR Description

Short technical summary and product information.

The FM22L16-55-TGTR is a 4-Mbit ferroelectric random access memory (F-RAM) from Infineon Technologies, logically organized as 256K x 16. This non-volatile memory offers high endurance with 100 trillion read/writes and a data retention of 151 years. It is SRAM compatible with an industry-standard pinout and provides a fast 55-ns access time and 110-ns cycle time.



Designed for low power consumption, it features active current of 8 mA (typ), standby current of 90 µA (typ), and sleep mode current of 5 µA (max). The device operates within a low voltage range of 2.7 V to 3.6 V and is rated for industrial temperatures from -40°C to +85°C. The FM22L16-55-TGTR is supplied in a 44-pin thin small outline package (TSOP) Type II, suitable for surface mounting.



This F-RAM technology offers superior reliability compared to battery-backed SRAM modules, eliminating battery concerns and providing monolithic reliability. Its fast write timing and high endurance make it ideal for applications requiring frequent or rapid writes. The memory is RoHS compliant.

FM22L16-55-TGTR Quick Information

Product Type: F-RAM Memory
Canonical Name: FM22L16-55-TGTR 4-Mbit (256K x 16) Parallel F-RAM Non-Volatile Memory
Subcategory: Memory

FM22L16-55-TGTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FM22L16-55-TGTR Estimated Pricing

Qty Low High
1+ $52.05 $52.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

FM22L16-55-TGTR Features

  • 4Mbit F-RAM non-volatile memory.
  • Fast 110 ns access and cycle times.
  • 151-year data retention.
  • Low power consumption.
  • Industrial temperature range.

FM22L16-55-TGTR Applications

  • Replaces battery-backed SRAM in industrial systems.
  • Ideal for real-time data logging applications.
  • Used in portable medical monitoring devices.
  • Suitable for metering and utility measurement equipment.
  • Provides non-volatile storage in industrial control.

FM22L16-55-TGTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the memory size of the FM22L16-55-TGTR?

The FM22L16-55-TGTR has a memory size of 4Mbit.

What is the access time for the FM22L16-55-TGTR?

The access time for the FM22L16-55-TGTR is 110 ns.

What is the operating voltage range for this F-RAM memory?

The operating voltage range for the FM22L16-55-TGTR is 2.7 V to 3.6 V.

What is the operating temperature range of the FM22L16-55-TGTR?

The operating temperature range for the FM22L16-55-TGTR is -40°C to +85°C.

What package type is the FM22L16-55-TGTR supplied in?

The FM22L16-55-TGTR is supplied in a 44-TSOP II package.

What is the data retention period for the FM22L16-55-TGTR?

The FM22L16-55-TGTR offers a data retention period of 151 years.

What is the endurance rating of this F-RAM memory?

The endurance rating for the FM22L16-55-TGTR is 100 trillion read/writes.
