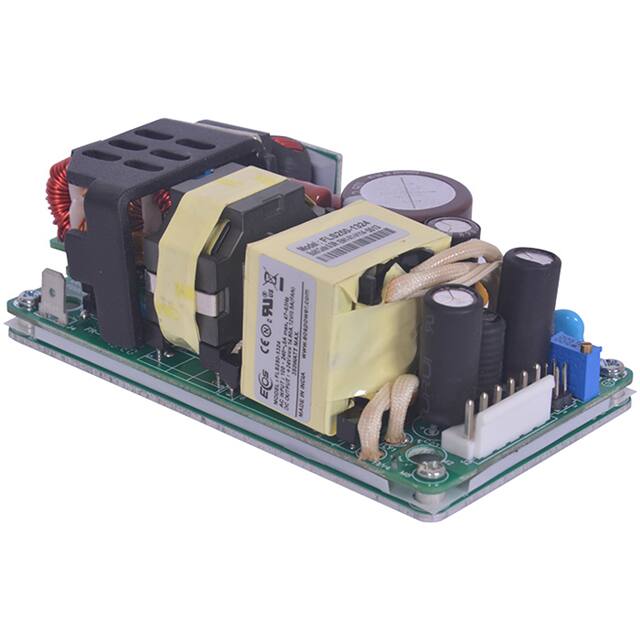

The FLS250-1315 from Bel Power Solutions is an AC-DC power supply designed for ITE (Commercial) applications. It delivers a 15VDC output at up to 18A, providing 200W of power, with a forced air rating of 270W. The input voltage range is 85 to 264 VAC, supporting universal input.
This converter boasts a high efficiency of 94% and operates within a temperature range of -40°C to 70°C with derating. Its mechanical specifications include dimensions of 114.3mm x 63.5mm x 39.9mm (4.50" x 2.50" x 1.57"). The unit is designed with an open frame and chassis mount for easy integration into systems.
Key features include adjustable output, DC input capability, Power Factor Correction (PFC), and 4kV voltage isolation. It is compliant with safety standards such as CB, CE, CSA, NEMKO, and UL, and meets the 62368-1 standard. The RoHS status is RoHS3 Compliant.
The output voltage is 15 VDC and the output current is 18 A.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -40°C to 70°C with derating.
The power rating is 200W, with 270W available under forced air cooling.
The typical efficiency is 94%.
It is an open frame package with chassis mount and JST header connectors.
It is approved to UL 62368-1 with CB, CE, CSA, NEMKO, and UL certifications.
