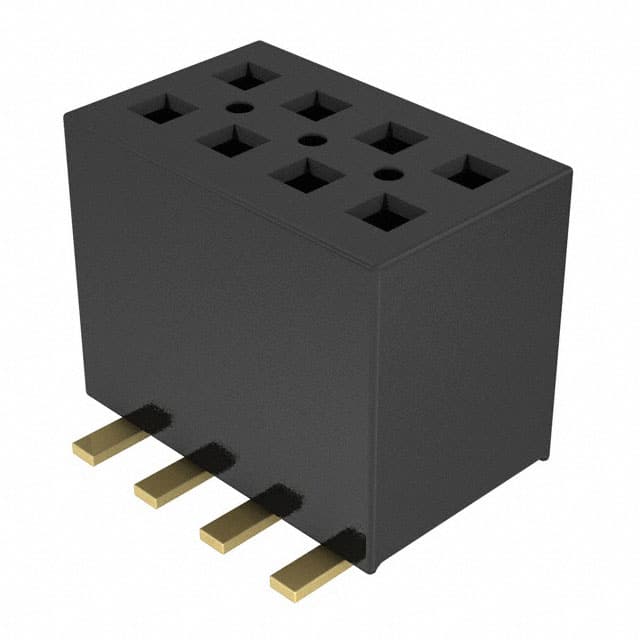

FLE-104-01-G-DV Samtec FLE-104-01-G-DV is an 8 position, 2 row, 1.27mm pitch female socket receptacle with gold contacts, surface mount termination.
Mfr Part #:

FLE-104-01-G-DV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec FLE-104-01-G-DV is an 8 position, 2 row, 1.27mm pitch female socket receptacle with gold contacts, surface mount termination.
✓ Total Stock: 21 pcs
$ Price Range: $1.19 - $1.92

FLE-104-01-G-DV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FLE-104-01-G-DV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Current Rating (Amps)
Current Rating (Nominal @ 2 Pins Powered)
Fastening Type
Insertion Depth
Insulation Color
Insulation Height
Lead Spacing
Lead Style
Lead-Free Solderable
Max Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SMT Lead Coplanarity
Style
Termination
View Similar Products (0)

FLE-104-01-G-DV Description

Short technical summary and product information.

The Samtec FLE-104-01-G-DV is a 8 position, 2 row receptacle from the FLE series. It features a 1.27mm pitch and row spacing, making it suitable for high-density board-to-board or cable applications. The connector uses a push-pull fastening type and is surface mount with solder termination.



The receptacle is rated for 2.9A per pin (2 pins powered) and operates over a temperature range of -55°C to +125°C. Contacts are gold plated over 50µ" nickel, ensuring reliable connections. The insulator is black liquid crystal polymer.



Designed for up to 100 mating cycles, the FLE-104-01-G-DV supports insertion depths from 1.83mm to 4.37mm or pass-through. It is lead-free solderable with SMT lead coplanarity of 0.10mm maximum.

FLE-104-01-G-DV Quick Information

Product Type: Receptacle
Series: FLE
Canonical Name: Samtec FLE Series 8 Position 1.27mm Pitch Female Socket Receptacle
Subcategory: Headers, Receptacles, Female Sockets

FLE-104-01-G-DV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FLE-104-01-G-DV Estimated Pricing

Qty Low High
1+ $1.92 $1.92
10+ $1.63 $1.63
100+ $1.38 $1.38
500+ $1.23 $1.23
1,000+ $1.19 $1.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

FLE-104-01-G-DV Features

  • 8 position 2 row 1.27mm pitch receptacle.
  • Gold plated contacts for reliable connections.
  • Rated for 2.9A per pin (2 pins powered).
  • Surface mount with solder termination.
  • Operating temperature range -55°C to 125°C.

FLE-104-01-G-DV Applications

  • Board-to-board and cable interconnections.
  • High-density electronic assemblies.
  • Industrial and commercial electronic systems.

FLE-104-01-G-DV FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the FLE-104-01-G-DV have?

The FLE-104-01-G-DV has 8 positions in 2 rows.

What is the pitch of the FLE-104-01-G-DV?

The pitch is 1.27mm (0.050").

What is the current rating of the FLE-104-01-G-DV?

The current rating is 2.9A per pin with 2 pins powered.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What mounting type does the FLE-104-01-G-DV use?

It uses surface mount with solder termination.
