| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
280 pcs
|
280 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bucket Diameter | |
| Cable Diameter | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Diameter | |
| Contact Resistance | |
| Contact Termination | |
| Dimension L | |
| Dimension M | |
| Dimension a | |
| Fastening Type | |
| Housing Color | |
| Housing Material | |
| Impedance | |
| Industrial Grade | |
| Ingress Protection | |
| Insulator Material | |
| Keying | |
| Lead Style | |
| Mating Cycles | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Rated Current | |
| Retention Force | |
| Salt Spray Corrosion | |
| Shield Termination | |
| Test Voltage (AC) | |
| Test Voltage (DC) | |
| VSWR | |
| Weight | |
| dimension (@ S 2) |

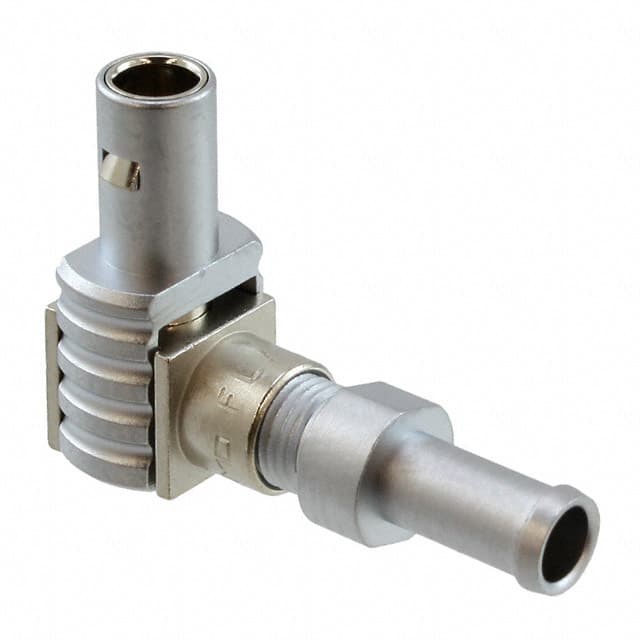

The FLA.00.250.CTAC31Z is a right angle coaxial connector plug from LEMO's Series 00 NIM-CAMAC product line. It features a male pin contact and 50 Ohm impedance, designed for use with RG-179B coaxial cable. The connector uses a push-pull locking system for quick and reliable mating.
Electrically, the connector offers a rated current of 4 A, maximum contact resistance of 6.1 mOhm, and a VSWR of 1.09 + 0.11 * f/GHz. It withstands test voltages of 2100 V AC and 3000 V DC. The dielectric insulator is PTFE.
Mechanically, the connector is constructed with a brass housing, chrome plated shell, and nickel plated latch sleeve. It supports cable diameters from 2.80 to 3.10 mm and has a cable collet screen termination. Dimensions include an overall length of 17.5 mm and a weight of 5.4 g. The connector is rated for 5000 mating cycles and provides a minimum retention force of 100 N.
Environmental protection is IP50 (dust protected). The connector can withstand salt spray corrosion for over 1000 hours. It is designed for free hanging (in-line) installation with right angle cable exit. The center contact material is brass and contact termination is solder type.
| Qty | Low | High |
|---|---|---|
| 1+ | $44.66 | $44.66 |
| 10+ | $37.96 | $37.96 |
| 25+ | $35.59 | $35.59 |
| 50+ | $33.89 | $33.89 |
| 100+ | $32.27 | $32.27 |
| 250+ | $30.25 | $30.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1
50 Ohm
4 A
2100 V AC and 3000 V DC
Free Hanging (In-Line) and Right Angle
5000 cycles
Push-Pull
