| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,562 pcs
|
2562 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Base Resonator | |
| Current | |
| Duty Cycle | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Phase Jitter | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

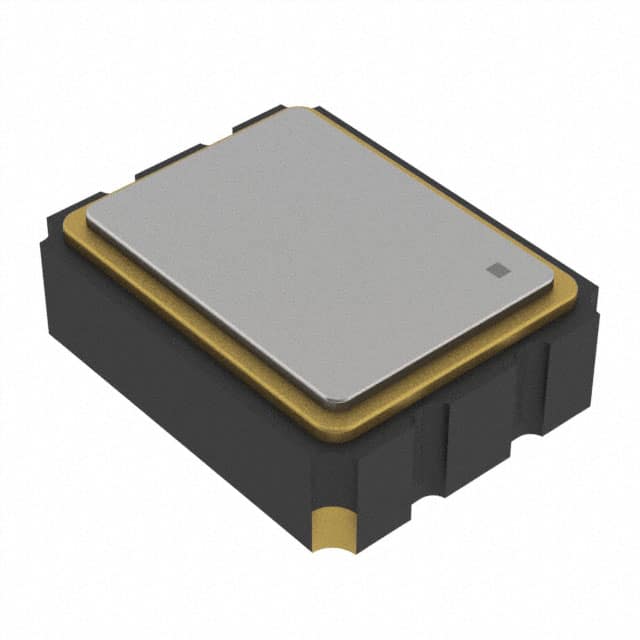

The FKSSD1025 is a 25 MHz crystal clock oscillator (XO) from Diodes Incorporated, part of the FK Series. It operates at 3.3V with CMOS output logic and features an enable/disable function. The oscillator delivers a nominal frequency of 25 MHz with ±25 ppm stability and a duty cycle of 45% to 55% measured at 50% VDD. It provides a maximum rise/fall time of 5 ns and phase jitter less than 1 ps RMS over the 12 kHz to 20 MHz band. The device is designed for surface mount assembly in a 3.2 x 2.5mm 4-SMD no lead ceramic package with a height of 1.15 mm. It is supplied on tape and reel and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.26 | $1.26 |
| 10+ | $1.10 | $1.10 |
| 25+ | $1.00 | $1.00 |
| 100+ | $0.96 | $0.96 |
| 250+ | $0.90 | $0.90 |
| 500+ | $0.87 | $0.87 |
| 3,000+ | $0.87 | $0.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FKSSD1025 operates at a nominal frequency of 25 MHz.
The supply voltage is 3.3V.
The operating temperature range is -10°C to 70°C.
Yes, it is RoHS3 compliant.
The package is 4-SMD, No Lead with dimensions 3.20mm x 2.50mm x 1.15mm.
The output logic is CMOS.
Yes, it has an enable/disable function.
