Mfr Part #:

FKP2C023301L00HSSD

Mfr Name: WIMA

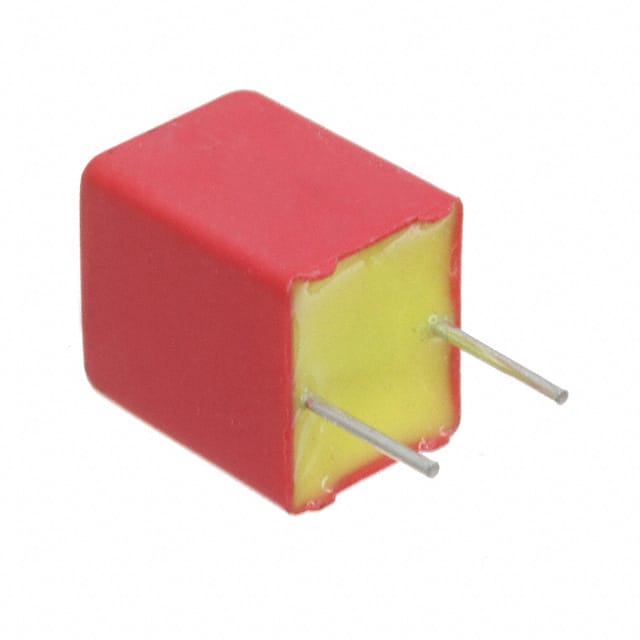

0.033 µF polypropylene film capacitor with ±2.5% tolerance and 63V DC rating. Radial through-hole package with 5mm lead spacing.

✓ Total Stock: 5 pcs

$ Price Range: $0.34 - $1.10

FKP2C023301L00HSSD Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FKP2C023301L00HSSD Description

Short technical summary and product information.

The WIMA FKP2C023301L00HSSD is a 0.033 µF polypropylene (PP) film and foil capacitor designed for pulse and high frequency applications. It features a ±2.5% capacitance tolerance and a rated DC voltage of 63V. The capacitor exhibits very low dissipation factor (≤4×10⁻⁴ at 1 kHz and 10 kHz), high insulation resistance (≥5×10⁵ MΩ), and low dielectric absorption (0.05%).

This component is housed in a solvent-resistant, flame-retardant plastic case (UL 94 V-0) with radial through-hole terminations and 5mm lead spacing. It operates over a temperature range of -55°C to +100°C and has a temperature coefficient of -200 ppm/°C. The maximum pulse rise time is 1000 V/µs for pulses equal to rated voltage.

Typical applications include high frequency filtering, sample and hold circuits, timing, LC filtering, oscillating circuits, and audio equipment. The capacitor is suitable for switching and high pulse DV/DT environments.

FKP2C023301L00HSSD Quick Information

Product Type: Film Capacitor

Canonical Name: WIMA FKP2 0.033 µF Polypropylene Film Capacitor, 63V DC, ±2.5% Tolerance, Radial

Subcategory: Polypropylene Film Capacitor

FKP2C023301L00HSSD Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FKP2C023301L00HSSD Estimated Pricing

Qty	Low	High
1+	$1.10	$1.10
10+	$0.59	$0.59
100+	$0.52	$0.52
500+	$0.43	$0.43
1,000+	$0.42	$0.42
2,000+	$0.38	$0.38
4,000+	$0.36	$0.36
10,000+	$0.35	$0.35
24,000+	$0.34	$0.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

FKP2C023301L00HSSD Features

Polypropylene film and foil dielectric.
Very low dissipation factor of ≤4×10⁻⁴.
High insulation resistance ≥5×10⁵ MΩ.
Rated for 63V DC operation.
Radial through-hole package with 5mm lead spacing.

FKP2C023301L00HSSD Applications

Ideal for high frequency filtering circuits.
Suitable for sample and hold applications.
Used in timing and oscillating circuits.
Designed for pulse duty applications.

FKP2C023301L00HSSD FAQs

7 frequently asked questions generated from this part’s specifications.

What is the capacitance value?

0.033 µF.

What is the voltage rating?

63V DC.

What is the dielectric material?

Polypropylene (PP).

What is the capacitance tolerance?

±2.5%.

What is the package type?

Radial through-hole with PC pins and 5mm lead spacing.

What is the operating temperature range?

-55°C to +100°C.

What is the dissipation factor?

≤4×10⁻⁴ at 1 kHz and 10 kHz for C>4700 pF.

Category	Film Capacitors
Manufacturer Name	WIMA
Applications	High Frequency, Switching; High Pulse, DV/DT
Capacitance	0.033 µF
Dielectric Material	Polypropylene (PP)
Failure Rate	≤5 fit
Height	10.00 mm
Lead Spacing	5.00 mm
Length	7.20 mm
Mounting Type	Through Hole
Operating Temperature	-55°C to +100°C
Tape & Reel	Available
Temperature Coefficient	-200 ×10⁻⁶/°C
Termination	PC Pins
Termination Style	PC Pins
Tolerance	±2.5%
Voltage Rating	63 V
Width	8.50 mm
