Mfr Part #:

FK4B01120L1

Name: FK4B01120L1
Brand: Panasonic Electronic Components
SKU: FK4B01120L1

Description:

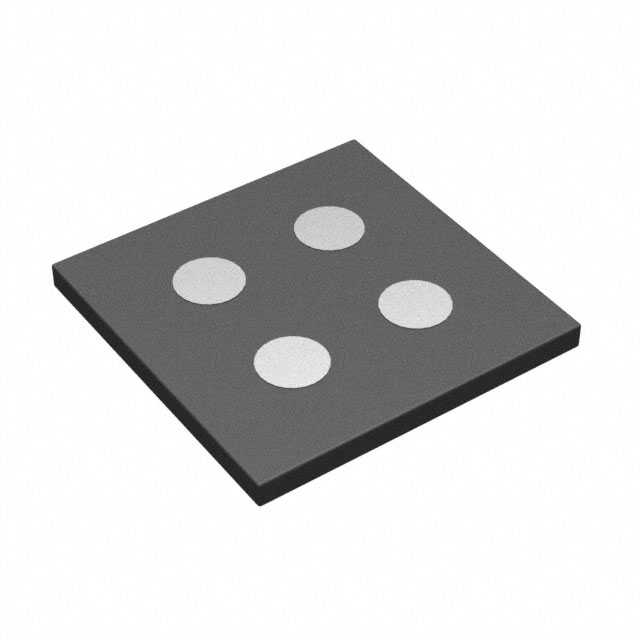

MOSFET N-CH 12V 3.9A ULGA004

Stock on Request

FK4B01120L1 Description

Short technical summary and product information.

MOSFET N-CH 12V 3.9A ULGA004

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Panasonic Electronic Components
Current	3.9A (Ta)
Drain to Source Voltage (Vdss)	12 V
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	7 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	490 pF @ 10 V
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)
Power Dissipation (Max)	370mW (Ta)
Rds On (Max) @ Id, Vgs	24mOhm @ 1.5A, 4.5V
Supplier Device Package	ULGA004-W-1010-RA01
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±8V
Vgs(th) (Max) @ Id	1V @ 394µA
