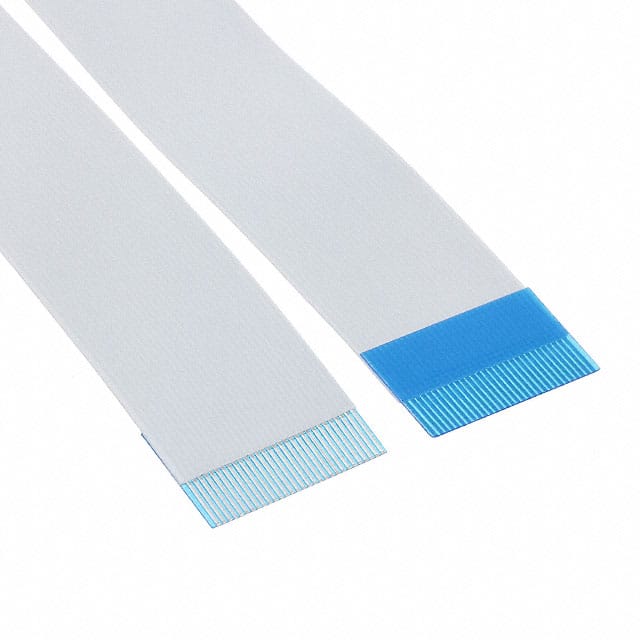

The Samtec FJH-30-R-12.00-4 is a 30-conductor flat flexible cable (FFC/FPC) jumper with a 0.50 mm pitch and a length of 12 inches (304.8 mm). It is part of the FJH series and features a reversed end termination style, where the contacts are on top on one side and bottom on the other, with backers on both sides. The cable uses tin-plated copper conductors and phosphor bronze contacts, with a natural LCP insulator.
Electrically, the cable is rated for 195 VAC maximum voltage and 1.8 A per pin (typical, with one pin powered). The maximum conductor resistance is 1000 Ω/km. The operating temperature range is -55°C to +80°C for the FJH cable. The cable is lead-free solderable and has an SMT lead coplanarity of 0.10 mm maximum for 10-30 positions.
This jumper cable is designed for use with Samtec ZF5S series sockets and is suitable for high-density flat flex cable interconnects in compact electronic assemblies. The reversed end style allows for specific routing configurations. The cable is available in standard lengths and comes with a strip length of 4 mm for termination.
