| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,744 pcs
|
1744 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Storage Temperature | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

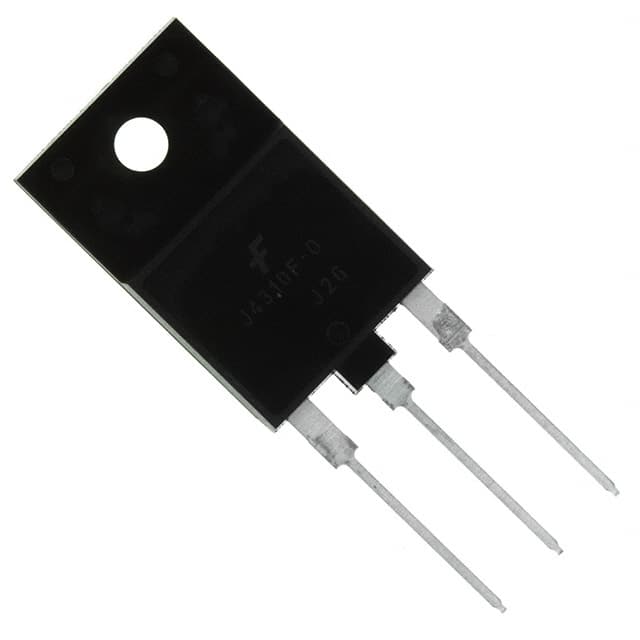

The FJAF4310OTU is an NPN bipolar junction transistor manufactured by ON Semiconductor. It is designed for general-purpose switching and amplification applications requiring medium voltage and current handling.
With a collector-emitter breakdown voltage of 140 V and a continuous collector current rating of 10 A, this transistor can handle up to 80 W of power dissipation. It features a transition frequency of 30 MHz, making it suitable for moderate-speed switching. The DC current gain (hFE) is guaranteed to be at least 70 at a collector current of 3 A and Vce of 4 V, and the collector-emitter saturation voltage is typically 500 mV at a base current of 500 mA and collector current of 5 A.
The device is offered in a TO-3P-3 Full Pack (TO-3PF) through-hole package, which provides good thermal performance. The maximum junction temperature is 150°C. The mounting type is through-hole, suitable for PCB mounting with appropriate heat sinking.
The FJAF4310OTU is listed as RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). These compliance statuses are unverified from the datasheet but are based on manufacturer data.
| Qty | Low | High |
|---|---|---|
| 720+ | $1.05 | $1.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter breakdown voltage (Vceo) is 140 V.
The maximum continuous collector current (Ic) is 10 A.
The power dissipation (Pd) is 80 W.
The maximum operating junction temperature is 150°C.
It is available in a TO-3P-3 Full Pack (TO-3PF) through-hole package.
Yes, it is listed as RoHS3 compliant (unverified).
The minimum hFE is 70 at Ic = 3 A and Vce = 4 V.
