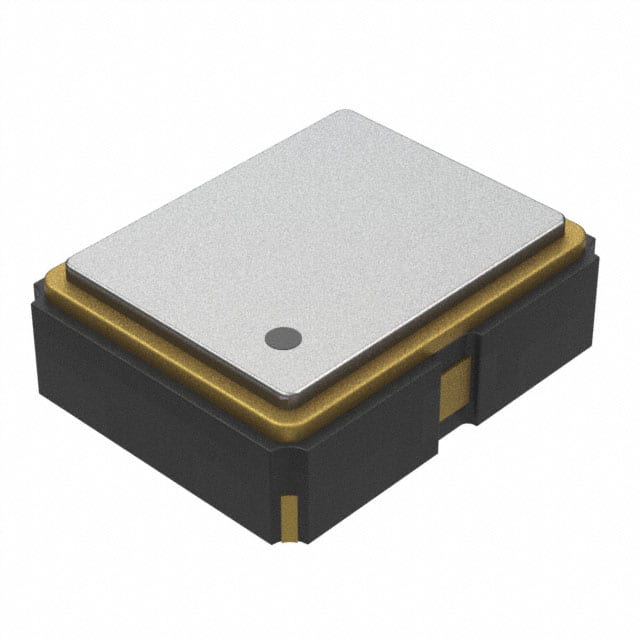

FJ2700014 XTAL OSC XO 27.0000MHZ CMOS SMD. 27 MHz CMOS output oscillator with 2.8V supply voltage, surface mount 4-SMD no lead package.
Mfr Part #:

FJ2700014

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
XTAL OSC XO 27.0000MHZ CMOS SMD. 27 MHz CMOS output oscillator with 2.8V supply voltage, surface mount 4-SMD no lead package.
✓ Total Stock: 12,000 pcs
$ Price Range: $0.86

FJ2700014 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FJ2700014 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Frequency
Length
Mounting Type
Operating Temperature
Output
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

FJ2700014 Description

Short technical summary and product information.

The FJ2700014 is a 27 MHz crystal oscillator (XO) from Diodes Incorporated, providing a standard CMOS output. It operates from a 2.8V supply voltage and is designed for surface mount assembly in a compact 4-SMD, no lead package measuring 2.50mm x 2.00mm.



This oscillator is suitable for general-purpose timing applications requiring a stable 27 MHz reference clock. The operating temperature range spans -20°C to 70°C, covering typical commercial and industrial environments.



The device uses a crystal as its base resonator and is offered in a standard XO (crystal oscillator) configuration. Its small footprint and low voltage operation make it appropriate for space-constrained and low-power designs.

FJ2700014 Quick Information

Product Type: Oscillator
Canonical Name: FJ2700014 - 27 MHz CMOS XO Oscillator, 2.8V, Surface Mount
Subcategory: Crystal Oscillator

FJ2700014 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FJ2700014 Estimated Pricing

Qty Low High
3,000+ $0.86 $0.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

FJ2700014 Features

  • 27 MHz CMOS output oscillator.
  • Operates from 2.8V supply voltage.
  • Surface mount 4-SMD no lead package.
  • Compact 2.50mm x 2.00mm footprint.
  • Operating temperature -20°C to 70°C.

FJ2700014 Applications

  • General purpose clock generation circuits.
  • Timing reference for digital systems.
  • Low voltage portable electronics.

FJ2700014 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output type of the FJ2700014?

The output is CMOS.

What is the supply voltage for this oscillator?

The supply voltage is 2.8V.

What is the operating temperature range?

The operating temperature range is -20°C to 70°C.

What package does the FJ2700014 come in?

It comes in a 4-SMD, No Lead package.

Is the FJ2700014 RoHS compliant?

The RoHS status is listed as RoHS3 Compliant, but this is unverified.
