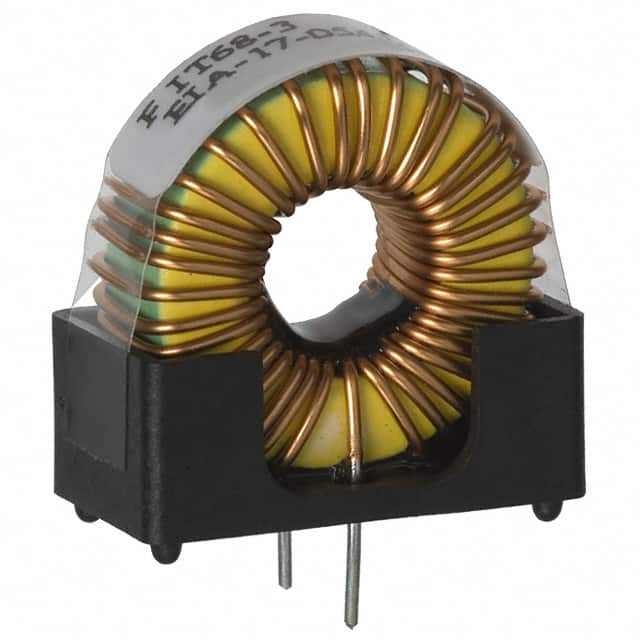

FIT68-3 Triad Magnetics FIT68-3 is a toroidal fixed inductor with 54.81µH minimum inductance, 4A current rating, and 59.9mOhm maximum DCR. It is unshielded with through-hole mounting.
Mfr Part #:

FIT68-3

Available from 1 distributors
Mfr Name: Triad Magnetics
Triad Magnetics
Triad Magnetics FIT68-3 is a toroidal fixed inductor with 54.81µH minimum inductance, 4A current rating, and 59.9mOhm maximum DCR. It is unshielded with through-hole mounting.
✓ Total Stock: 44 pcs
$ Price Range: $1.62 - $3.14

FIT68-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
44 pcs
On Request
44 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FIT68-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Inductance (Minimum @ Rated DC Amps (4.0 A)
Length
Material
Mounting Type
Operating Temperature
Shielding
Termination Style
Type
Weight
Width
View Similar Products (0)

FIT68-3 Description

Short technical summary and product information.

The FIT68-3 is a switchmode/high frequency toroidal inductor from Triad Magnetics designed to minimize transients and condition output signals. It stores energy and levels current waveforms for stable current supply in high frequency circuits. Key electrical specifications include a minimum inductance of 54.81 µH (no bias, measured at 0.25V, 10kHz) and 33.05 µH at rated DC bias of 4.0 A. The maximum DC resistance is 59.9 mOhm. The inductor is unshielded and features an iron powder core. It is rated for operating temperatures from -40°C to 85°C. The package is a radial, vertical open style with through-hole mounting and PC pin termination. Dimensions are 22.22mm length, 12.07mm width, and 24.13mm height. Weight is 0.026 lb. The part is RoHS compliant per 2011/65/EU. Typical applications include differential mode filtering and output inductor in switch-mode power supplies.

FIT68-3 Quick Information

Product Type: Fixed Inductor
Canonical Name: Triad Magnetics FIT68-3 Toroidal Inductor
Subcategory: Fixed Inductors

FIT68-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FIT68-3 Estimated Pricing

Qty Low High
1+ $3.14 $3.14
10+ $2.58 $2.58
25+ $2.39 $2.39
50+ $2.25 $2.25
100+ $2.12 $2.12
250+ $1.96 $1.96
500+ $1.85 $1.85
1,000+ $1.75 $1.75
2,500+ $1.62 $1.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

FIT68-3 Features

  • Toroidal iron powder core construction.
  • Minimum inductance 54.81 µH at no bias.
  • Rated for 4 A DC current.
  • Maximum DC resistance 59.9 mOhm.
  • Through-hole radial package with PC pins.

FIT68-3 Applications

  • Used in switch-mode power supply output filtering.
  • Suitable for differential mode EMI suppression.
  • Ideal for high frequency current conditioning circuits.

FIT68-3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the FIT68-3?

Minimum inductance is 54.81 µH at no bias (0.25V, 10kHz) and 33.05 µH at rated DC bias of 4.0 A.

What is the current rating?

4 A DC.

What is the DC resistance?

Maximum 59.9 mOhm.

What is the package type?

Radial, Vertical (Open) through-hole package with PC pin termination.

Is the inductor shielded?

No, it is unshielded.

What is the operating temperature range?

-40°C to 85°C.

What core material is used?

Iron powder.
