FIT44-4 The FIT44-4 is a through-hole toroidal inductor from Triad Magnetics with a minimum inductance of 8.06 µH and a rated DC current of 4.8 A.
Mfr Part #:

FIT44-4

Available from 1 distributors
Mfr Name: Triad Magnetics
Triad Magnetics
The FIT44-4 is a through-hole toroidal inductor from Triad Magnetics with a minimum inductance of 8.06 µH and a rated DC current of 4.8 A.
✓ Total Stock: 90 pcs
$ Price Range: $1.08 - $2.10

FIT44-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FIT44-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Inductance (Minimum @ No Bias)
Lead Diameter
Length
Material
Mounting Type
Operating Temperature
Shielding
Type
Weight
Width
View Similar Products (0)

FIT44-4 Description

Short technical summary and product information.

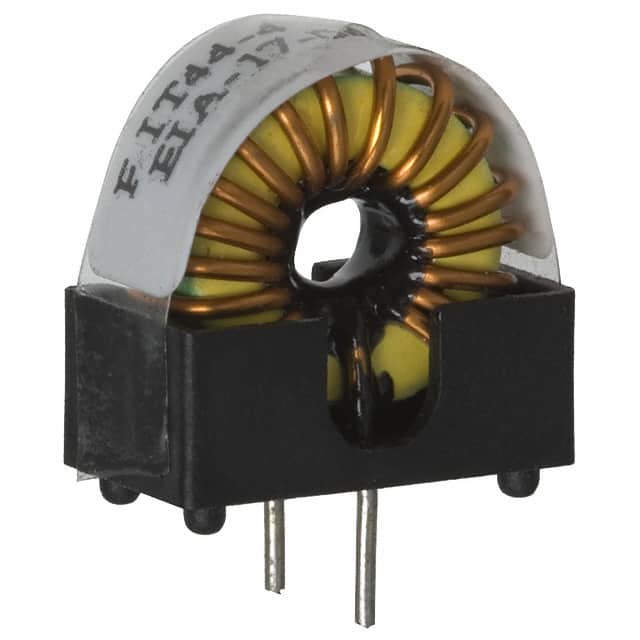

The Triad Magnetics FIT44-4 is a fixed toroidal inductor designed for switch mode and high frequency differential mode applications. It features an iron powder core and an unshielded radial, vertical (open) package for through-hole mounting.



Key electrical specifications include a minimum no-bias inductance of 8.06 µH (measured at 0.25V, 10kHz) and a minimum biased inductance of 5.22 µH at the rated 4.8 A DC current. The maximum DC resistance (DCR) is 15.9 mOhm. The component is designed to operate within a temperature range of -40°C to 85°C.



The inductor measures 15.88 mm in length, 8.89 mm in width, and 17.78 mm in height, with a weight of 0.008 lbs. It is RoHS compliant per the 2011/65/EU directive.

FIT44-4 Quick Information

Product Type: Fixed Inductor
Canonical Name: Triad Magnetics FIT44-4 Switch Mode/High Frequency Differential Mode Toroidal Inductor
Subcategory: Switch Mode/High Frequency Differential Mode Inductor

FIT44-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FIT44-4 Estimated Pricing

Qty Low High
1+ $2.10 $2.10
10+ $1.73 $1.73
25+ $1.60 $1.60
50+ $1.51 $1.51
100+ $1.42 $1.42
250+ $1.32 $1.32
500+ $1.24 $1.24
1,000+ $1.17 $1.17
2,500+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

FIT44-4 Features

  • Toroidal iron powder core construction.
  • Minimum 8.06 µH inductance at no bias.
  • Rated for 4.8 A DC current.
  • Maximum 15.9 mOhm DC resistance.
  • Through-hole radial vertical package.

FIT44-4 Applications

  • Differential mode filtering in switch mode power supplies.
  • Output inductor for high frequency circuits.
  • Energy storage for current waveform conditioning.

FIT44-4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the FIT44-4?

The minimum no-bias inductance is 8.06 µH, measured at 0.25V and 10kHz. The minimum biased inductance at 4.8 A DC is 5.22 µH.

What is the current rating of the FIT44-4?

The rated DC current is 4.8 A.

What is the DC resistance (DCR) of the FIT44-4?

The maximum DC resistance is 15.9 mOhm.

What is the mounting type for the FIT44-4?

The mounting type is through hole, with a radial, vertical (open) package.

What is the operating temperature range for the FIT44-4?

The operating temperature range is -40°C to 85°C.

What is the core material of the FIT44-4?

The core material is iron powder.

Is the FIT44-4 RoHS compliant?

Yes, the datasheet states it is RoHS compliant, meeting the requirements of 2011/65/EU.
