| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Failure Rate | |
| Gender | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Pitch | |
| SVHC Present | |
| Termination Style |

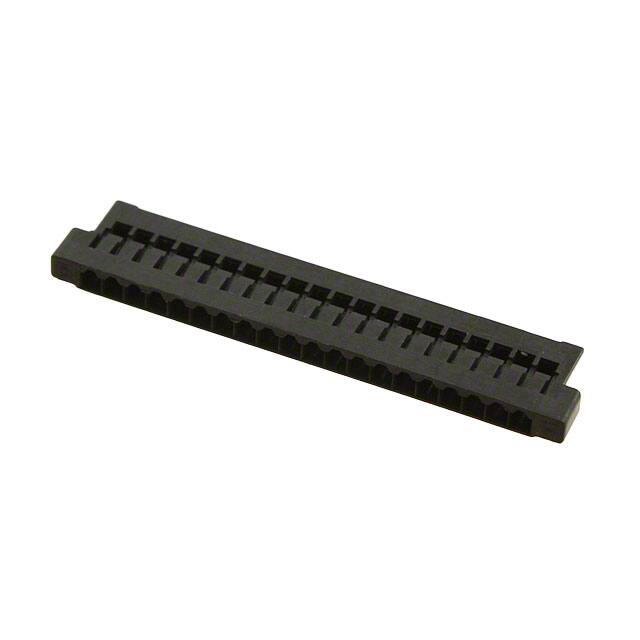

The JAE Electronics FIS20S is a rectangular connector housing with a plug type, designed for cable mounting in an in-line configuration. It offers 20 positions with a 1.25mm pitch and a straight orientation. The housing is constructed from Nylon, with Copper contacts plated in Gold. This connector is rated for 1A current and has a contact resistance of 40mOhm and insulation resistance of 100MOhm. It features a friction lock mounting feature and a female socket contact type. The housing color is black and it meets UL94 V-0 flammability rating. The product is RoHS compliant and Lead Free. Contacts are not included.
This connector is suitable for various applications requiring reliable connections. Its robust construction and specific electrical characteristics make it a viable option for designs needing a 20-position plug connector with a 1.25mm pitch. The free hanging mounting type allows for flexible integration into different system architectures. The active product status indicates ongoing availability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The JAE Electronics FIS20S connector has 20 positions.
The pitch of the JAE Electronics FIS20S connector is 1.25mm.
The JAE Electronics FIS20S connector has a current rating of 1A.
The JAE Electronics FIS20S connector housing is made of Nylon.
The contact plating on the JAE Electronics FIS20S connector is Gold.
The lead time from the manufacturer for the JAE Electronics FIS20S connector is 14 weeks.
Yes, the JAE Electronics FIS20S connector is RoHS compliant.
