| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Depth | |
| Frequency | |
| Height | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| SVHC Present | |
| Weight | |
| Width |

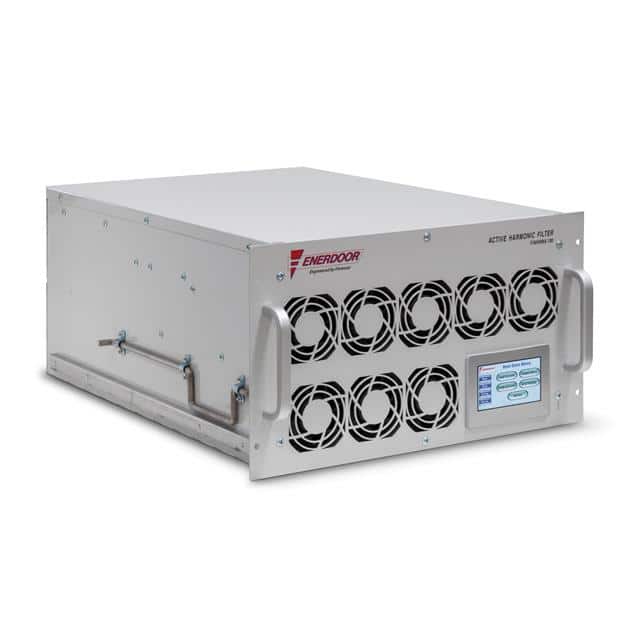

The Enerdoor FINHRMAD.100.5.3F.R is an active harmonic filter engineered to provide excellent attenuation of current harmonic distortion. It operates with a nominal voltage of 480V and a rated current of 100A, achieving an overall efficiency of over 97%.
This filter supports a wide harmonic filtering range from the 2nd to the 50th order, with a fast overall response time of less than 5ms. It features advanced digital control and a 4.3-inch color LCD touch screen interface for easy operation. Communication capabilities include RS485 and Ethernet ports, supporting Modbus and TCP/IP protocols.
The unit is designed for rack-mount installation and has a protection class of IP20. Its operating temperature range is -10°C to +40°C, and it can operate at altitudes up to 1500m. The mechanical dimensions are 483mm in width, 266mm in height, and 653mm in depth, with a weight of 38kg.
The nominal operating voltage is 480V.
The rated current is 100A.
The operating temperature range is -10°C to +40°C.
The overall efficiency is greater than 97%.
It filters harmonics from the 2nd to the 50th order.
The overall response time is less than 5ms.
This model supports rack-mount installation.
