Mfr Part #:

FINHRM5C.045.M-60

Mfr Name: Enerdoor

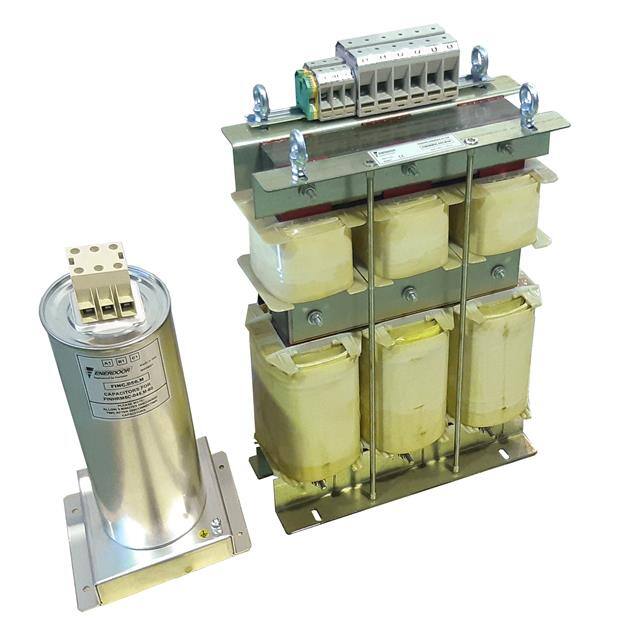

The Enerdoor FINHRM5C.045.M-60 is a passive harmonic filter designed for 0-480 Vac systems. It offers a rated current of 45A and reduces current THD to below 5%.

Stock on Request

FINHRM5C.045.M-60 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Enerdoor
Accessory Type	Passive Harmonic Filter
Frequency	50-60 Hz
Mounting Type	Open Frame
Rated Current	45 A

View Similar Products (0)

FINHRM5C.045.M-60 Description

Short technical summary and product information.

The Enerdoor FINHRM5C.045.M-60 is a passive harmonic filter designed to improve power quality in industrial applications. It operates within a nominal voltage range of 0-480 Vac and has a rated current of 45A.

This filter ensures compliance with IEEE519 and EN61000-3-12 standards, reducing current total harmonic distortion (THD) to less than 5%. It features low power loss and a compact, open-frame design.

Key benefits include improved flicker and power factor, making it suitable for use with VFDs, servo drives, processing and industrial automation, water and wastewater systems, oil & gas, and HVAC systems. The filter operates within a climatic class of -40 to +85°C.

FINHRM5C.045.M-60 Quick Information

Product Type: Passive Harmonic Filter

Series: FINHRM 5C

Canonical Name: Enerdoor FINHRM5C.045.M-60 Passive Harmonic Filter

Subcategory: Accessories

FINHRM5C.045.M-60 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FINHRM5C.045.M-60 Features

Reduces current THD to less than 5%.
Operates at 0-480 Vac nominal voltage.
Rated for 45A current.
Compact open frame design.
Meets IEEE519 and EN61000-3-12 compliance.

FINHRM5C.045.M-60 Applications

Ideal for VFD and servo drive systems.
Used in industrial automation.
Suitable for water and wastewater.
Applicable in oil & gas systems.
Effective in HVAC systems.

FINHRM5C.045.M-60 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage range?

0-480 Vac

What is the frequency range?

50-60 Hz

What is the rated current?

45 A

What is the overload capability?

4 x rated current (Switch ON), 2 x In for 10 seconds, 1.5 In for 10 minutes

What is the operating temperature range?

-40 to +85 °C

What is the IP protection rating?

IP20

What is the THD reduction?

Less than 5%
