| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Frequency | |
| Rated Current | |
| SVHC Present | |
| Termination Style | |
| Weight |

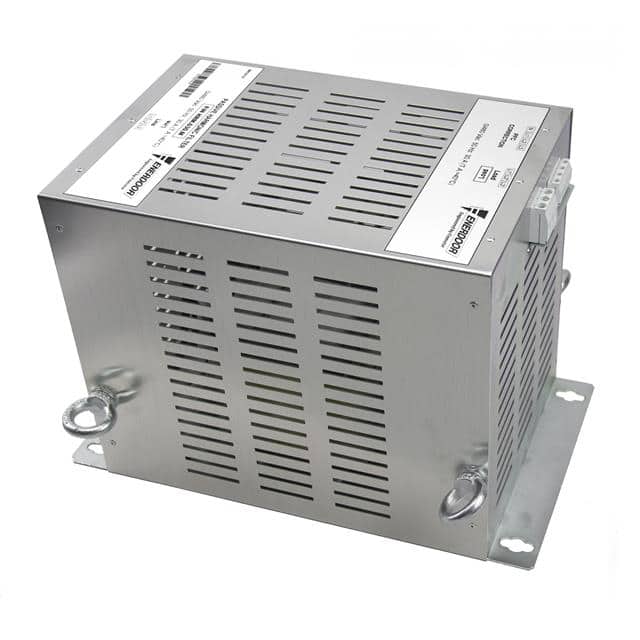

The Enerdoor FINHRM.030.M is a passive harmonic filter engineered to reduce current harmonic distortion and overvoltage spikes in electrical systems. It operates with a nominal voltage of 400/480 Vac and has a rated current of 30A.
Key technical specifications include a dielectric strength of 2400 Vdc phase-to-phase and 3200 Vdc phase-to-ground. The filter provides IP20 protection and can handle overload currents up to 4 times the rated current. Its climatic class is -40 to +85°C, ensuring reliable operation in various environments.
This passive harmonic filter is suitable for applications such as variable frequency drives, woodworking machinery, packaging machinery, and printing machinery. It features a terminal block connection for easy integration into existing systems. The filter offers a THDI reduction of less than 15%, with the potential for less than 10% THDI when used with a DC reactor.
The nominal voltage is 400/480 Vac, with 600 Vac available upon request.
The operating temperature range is -40 to +85°C.
The filter reduces THDI to less than 15%, and to less than 10% with a DC reactor.
The IP protection rating is IP20.
The weight is 28.2 kg.
It uses screw terminal connections with a 6 mm terminal block.
