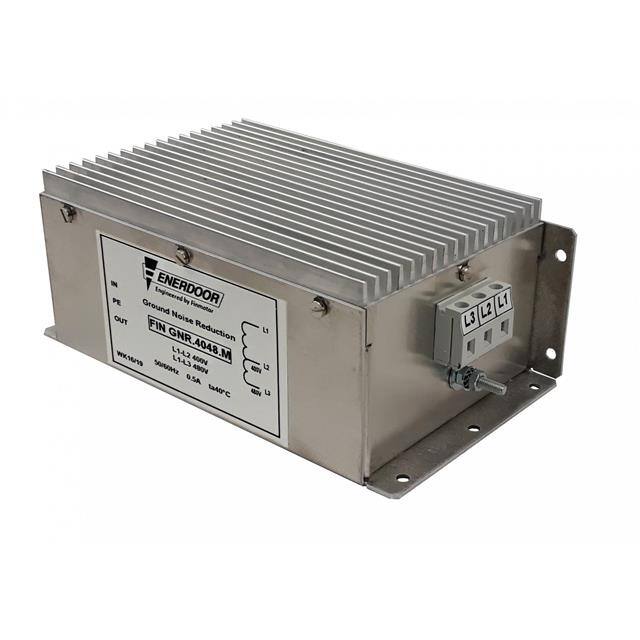

The Enerdoor FINGNR.0.1225 is an active PE ground noise reducer filter with excellent performance for industrial and residential applications. It features a compact design and offers high attenuation for PE ground noise, making it suitable for use with variable frequency drives, automated machinery, packaging machinery, and processing equipment.
This device supports nominal voltages of 120, 250, 400, and 480 VAC, operating within a frequency range of 50-60 Hz. It has an unlimited rated current and a maximum power dissipation of 200W. The filter is housed in an IP20 rated enclosure and operates within a climatic class of -40 to +85°C. It comes with a 2-year warranty and a reported MTBF of 250,000 hours at 40°C.
The FINGNR.0.1225 utilizes terminal block connections for solid and stranded cables, supporting solid cable sizes from 0.2 to 6 mm² and stranded cable sizes from 0.2 to 4 mm². The terminal block torque is specified at 0.5 Nm, and the PE torque is also 0.5 Nm. Its design includes safety terminal blocks and over-temperature protection.
The FINGNR.0.1225 operates at 250 VAC.
The operating frequency range is 50 to 60 Hz.
The maximum power dissipation is 200 W.
The IP protection rating is IP20.
The operating temperature range is -40 to +85°C.
The MTBF is 250,000 hours at 40°C.
The warranty period is 2 years.
