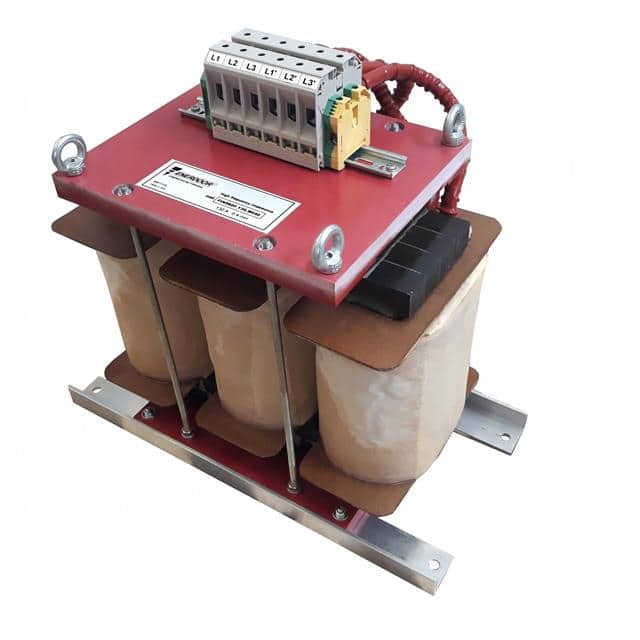

The Enerdoor FIN960F.050.M010 is a high-frequency differential mode choke designed for motor protection. It features a nominal voltage of 750V and a rated current range from 10 to 1000A, with this specific model rated at 50A.
This choke provides excellent attenuation for high-speed motors, CNC machinery, and woodworking machinery. It operates with low power loss and an output frequency up to 30 kHz, requiring no ventilation. The device protects motors against voltage spikes and increases motor life.
Key electrical characteristics include a potential test voltage of 2400 Vdc phase-to-phase and 3200 Vdc phase-to-ground. It has an IP20 protection rating and a climatic class of -40 to +85°C. The saturation current is 4 times the rated current, with overload capabilities of 2x In for 10 seconds and 1.5x In for 10 minutes or nominal current.
Available in open frame or enclosure configurations, the FIN960F.050.M010 is engineered for performance and reliability in demanding applications.
The nominal voltage is 750V.
It is available in Case 1, 2, 6 or Case 3, 4, 5, 7.
The operating temperature range is -40°C to +85°C.
The saturation current is 4 times the rated current (switch ON).
It can handle 2 x In for 10 seconds and 1.5 x In for 10 minutes.
The MTBF is 250,000 hours at 40°C.
No, it does not require ventilation.
