| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Ambient Temperature | |
| For Use With | |
| Output Frequency | |
| Rated Current | |
| Relative Humidity | |
| SVHC Present |

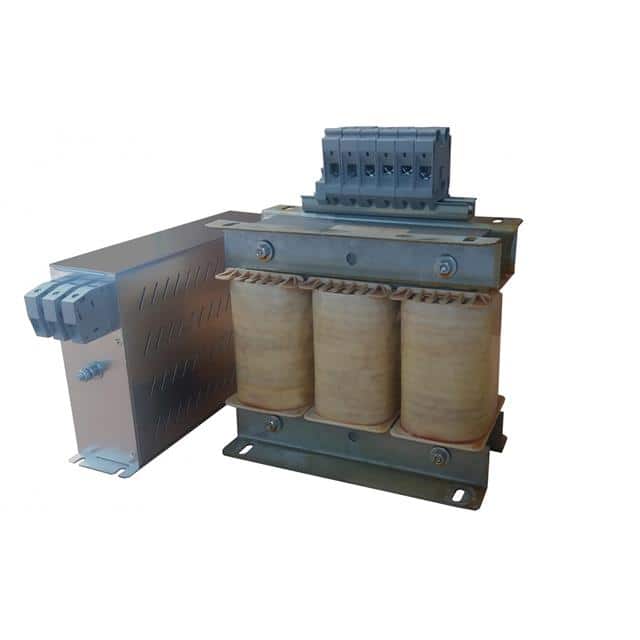

The Enerdoor FIN905SF.060.M is a sine wave filter designed to provide excellent attenuation for variable frequency drive applications. It operates at a nominal voltage of 600V and has a rated current of 60A, with an output frequency range of 0 to 100 Hz.
This filter is engineered for low power loss and requires no ventilation, making it a versatile component. It is suitable for long cable applications up to 2,500 meters and finds use in process plants, water treatment facilities, variable frequency drives, and agriculture.
The FIN905SF.060.M features a compact design and is available in various enclosures, including NEMA 1 (IP20) and NEMA 3R (IP54) options. Its ambient temperature rating is 70°C at 1000m altitude, with a relative humidity rating of less than 95% non-condensing.
The nominal voltage is 600V AC.
The rated current is 60A.
The ambient temperature rating is 70°C.
The output frequency range is 0 to 100 Hz.
The IP protection rating is IP20 up to 180A.
