Mfr Part #:

FIN900.030.C

Mfr Name: Enerdoor

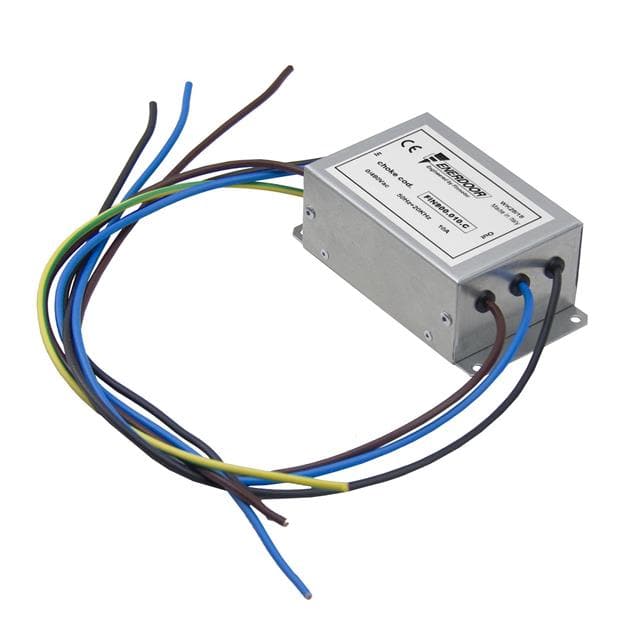

The Enerdoor FIN900.030.C is a common mode choke designed for motor applications. It operates at 600V and handles up to 30A.

Stock on Request

FIN900.030.C Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Enerdoor
Accessory Type	Common Mode Choke
Dimensions	60 x 65 x 12 mm
For Use With	Motors
Output Frequency	50 - 3500 Hz
Rated Current	30A
Weight	0.55 Kg

View Similar Products (0)

FIN900.030.C Description

Short technical summary and product information.

The Enerdoor FIN900.030.C is a common mode choke with a rated voltage of 600V and a rated current of 30A. It is designed to reduce voltage rise and high-frequency noise, helping systems pass emission tests.

This choke features IP20 protection and operates within a climatic class of -40°C to +85°C. Its overload capability includes 4x rated current on switch-on, 2x In for 10 seconds, and 1.5 In for 10 minutes. The MTBF at 40°C is rated at 250,000 hours.

Applications for the FIN900.030.C include motors controlled by drives, automated machinery, conveyors, and pumps. It offers high attenuation for reducing dV/dt and high-frequency noise, protecting motors against voltage spikes.

The FIN900.030.C has a cable connection and comes in a 1C case assembly with dimensions of 60 x 65 x 12 mm and a weight of 0.55 Kg.

FIN900.030.C Quick Information

Product Type: Common Mode Choke

Series: FIN900

Canonical Name: Enerdoor FIN900.030.C Common Mode Choke

Subcategory: Accessories

FIN900.030.C Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FIN900.030.C Features

Rated for 600V nominal voltage.
Handles a rated current of 30A.
Provides IP20 protection.
Operates from -40°C to +85°C.
Reduces voltage rise and noise.

FIN900.030.C Applications

Used in automated machinery.
Suitable for conveyor systems.
Applicable for pump controls.
Ideal for motor drive applications.

FIN900.030.C FAQs

7 frequently asked questions generated from this part’s specifications.

What is the nominal voltage of the FIN900.030.C?

600V AC.

What are the dimensions and weight of the FIN900.030.C?

60 x 65 x 12 mm, 0.55 kg.

What is the operating temperature range?

-40 to +85°C.

What is the rated current?

30A.

What is the output frequency range?

50 to 3500 Hz.

What is the IP protection rating?

IP20.

What is the MTBF?

250,000 hours at 40°C.
