Mfr Part #:

FIN900.010.C

Mfr Name: Enerdoor

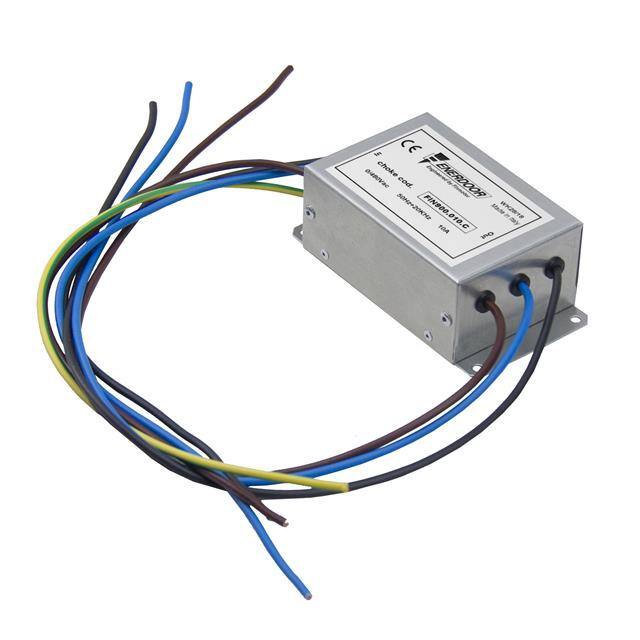

The Enerdoor FIN900.010.C is a common mode choke designed for motor control applications. It offers a nominal voltage of 600V and a rated current of 10A.

Stock on Request

FIN900.010.C Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Enerdoor
Accessory Type	Common Mode Choke
For Use With	Motors
Output Frequency	50 - 3500 Hz
Package / Case	1C / C / V
Rated Current	10 to 280A
Torque	1.2 Nm

View Similar Products (0)

FIN900.010.C Description

Short technical summary and product information.

The Enerdoor FIN900.010.C is a common mode choke accessory used for circuit protection, specifically designed to reduce voltage rise and high-frequency noise in motor control systems. It operates with a nominal voltage of 600 Vac and has a rated current capacity of 10A, with overload capabilities of up to 4 times the rated current.

This choke helps in passing emission tests for IEC61000-6-4 standards. It features a high attenuation indicator, making it effective in reducing dV/dt and high-frequency noise. The device is rated for a climatic class of -40°C to +85°C and has an IP20 protection rating.

Applications for the FIN900.010.C include motors controlled by drives, automated machinery, conveyors, and pumps. It provides protection against voltage spikes on the motor and contributes to a compact design. The part is available in various connection types, including cable and screw terminals, depending on the specific model variant.

FIN900.010.C Quick Information

Product Type: Common Mode Choke

Series: FIN900

Canonical Name: Enerdoor FIN900.010.C Common Mode Choke

Subcategory: Common Mode Choke

FIN900.010.C Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FIN900.010.C Features

Reduces voltage rise and high frequency noise.
Helps pass emission tests for IEC61000-6-4.
Rated for 600 Vac nominal voltage.
IP20 protection rating.
Operates from -40°C to +85°C.

FIN900.010.C Applications

Ideal for motors controlled by drives.
Used in automated machinery applications.
Suitable for conveyor systems.
Applicable for pump control circuits.

FIN900.010.C FAQs

7 frequently asked questions generated from this part’s specifications.

What is the nominal voltage of the FIN900.010.C?

600 Vac

What package types are available for the FIN900.010.C?

The FIN900.010.C is available in package cases 1C, C, and V.

What is the operating temperature range of the FIN900.010.C?

-40 to +85°C

What output frequency range does the FIN900.010.C support?

50 to 3500 Hz

What is the rated current of the FIN900.010.C?

10 A

What is the IP protection rating of the FIN900.010.C?

IP20

What is the MTBF of the FIN900.010.C?

250,000 hours at 40°C
