| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

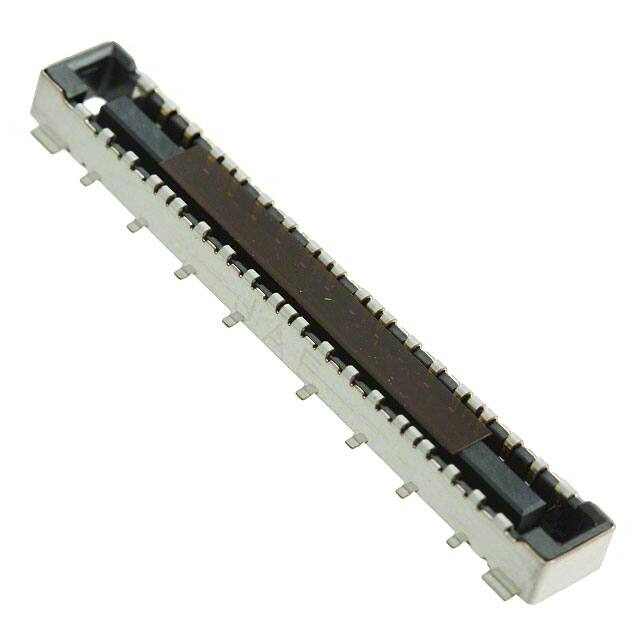

The JAE Electronics FI-TD50SB-E is a 50-position, single-row receptacle designed for board-to-cable/wire applications. It features a 0.50mm pitch and uses a center strip contact with a tin finish. The connector is surface mount (SMD) with solder termination, making it suitable for automated assembly processes.
This receptacle includes design features such as a board guide, pick and place capability, and solder retention for reliable manufacturing. It has a latch holder fastening type for secure mating. The insulation is black with a height of 2.79mm, and the mated stacking height is 4.5mm.
The operating temperature range is -40°C to 85°C, and the housing material has a UL94 V-0 flammability rating. The contact finish thickness is 30.0µin (0.76µm).
The FI-TD50SB-E has 50 positions, all loaded, in a single row.
The pitch is 0.50mm (0.020").
The current rating is 0.5A per contact.
The mounting type is surface mount (SMD) with solder termination.
The operating temperature range is -40°C to 85°C.
The material flammability rating is UL94 V-0.
