| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Height | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

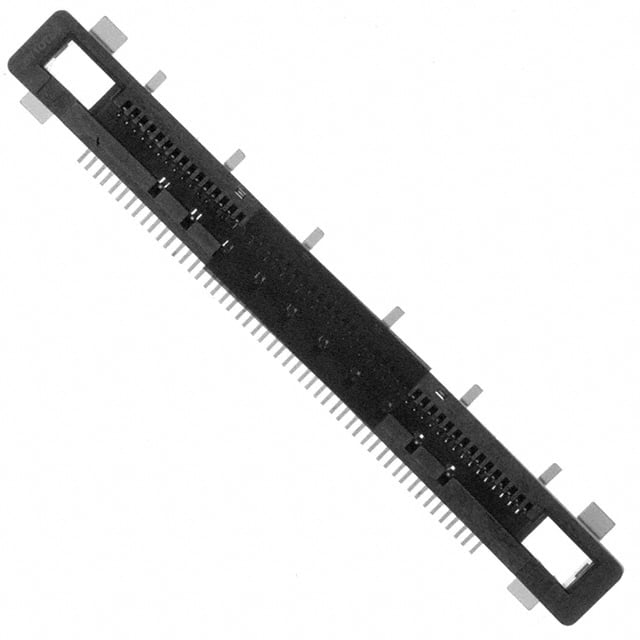

JAE Electronics FI-RE51S-VF is a 51-position receptacle connector designed for board-to-cable/wire applications. The connector features a surface mount termination with solder retention and a shielded design for enhanced signal integrity. The contact type is female blade socket, finished with tin for reliable conductivity.
Key specifications include a pitch of 0.50mm, insulation height of 4.65mm, and mated stacking heights of 10.1mm and 16.1mm. The connector is rated for 0.8A per contact and operates over a temperature range of -40°C to 80°C. The housing material has a UL94 V-0 flammability rating, ensuring safety in various applications.
The connector employs a latch holder fastening mechanism for secure mating. Additional features include shielding and solder retention, which improve mechanical stability and signal quality. The connector is available in surface mount packaging, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.24 | $6.24 |
| 10+ | $5.31 | $5.31 |
| 250+ | $4.81 | $4.81 |
| 500+ | $4.53 | $4.53 |
| 1,300+ | $3.84 | $3.84 |
| 2,600+ | $3.79 | $3.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
51 positions.
0.50mm.
0.8A per contact.
Surface mount.
Latch holder.
-40°C to 80°C.
Tin.
