| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Clipping Force | |
| Connector Housing | |
| Connector Lead Wire | |
| Connector Pin Assignment | |
| Connector Terminal | |
| Connector Type | |
| Diameter | |
| Fan Bearing Type | |
| Fan Life Time | |
| Fan Rated Voltage | |
| Fan Size | |
| Fin Height | |
| Heat Sink Material | |
| Heat Sink Size | |
| Lead Wire | |
| Material | |
| Mounting Hole Pitch | |
| Mounting Type | |
| Package Cooled | |
| Shape | |
| Supported Processor | |
| Thermal Interface Material | |
| Thermal Resistance @ Natural | |
| Type | |
| Weight |

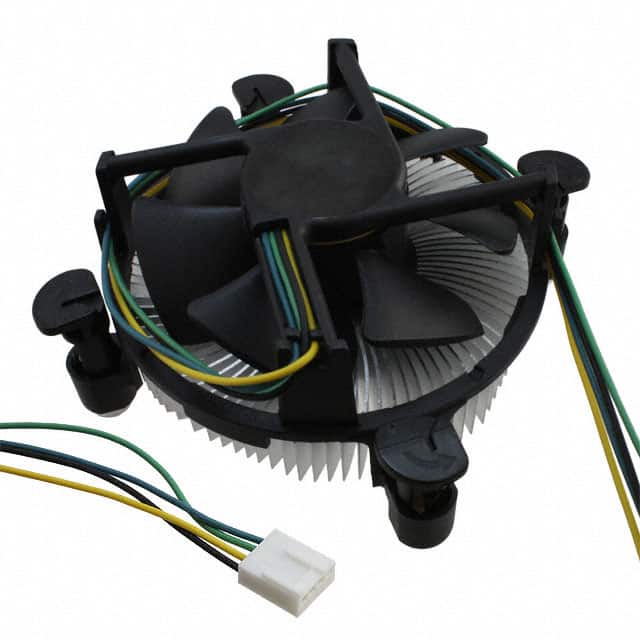

The Delta Electronics FHS-A9025S19 is a board-level CPU cooler designed for Intel LGA1156 processors, including Core i7-800, Nehalem, and Westmere series. It combines a 90x90x25mm fan with a 90x90x19.05mm heat sink constructed from Aluminum A6063 and Copper C1100. The fan operates at a rated voltage of 12V DC and uses a Superflo bearing rated for 50,000 hours of life.
The cooler provides a typical thermal resistance of 0.36°C/W under natural convection. It includes a pre-applied thermal interface material (Dow Corning TC-5630 or equivalent) and mounts using a bolt-on method with a 75x75mm mounting hole pitch. The 4-pin connector uses Molex 47054-1000 housing and 2759T terminals with a pin assignment for power, ground, tachometer, and PWM control.
| Qty | Low | High |
|---|---|---|
| 60+ | $13.73 | $13.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical thermal resistance is 0.36°C/W under natural convection.
The fan is 90x90x25mm and rated for 12V DC.
It supports Intel LGA1156 Core i7-800 (45nm 95W), Nehalem (45nm 95W), and Westmere (32nm 87W) Lynnfield & Clarkdale CPUs.
It uses a bolt-on attachment method with a 75x75mm mounting hole pitch.
The fan uses a Superflo bearing with a lifetime of 50,000 hours.
The heat sink is made of Aluminum A6063 and Copper C1100 or equivalent.
Pin 1: black (-), pin 2: yellow (+), pin 3: green (F00), pin 4: blue (PWM).
